Akcesoria do obudów
B4116126

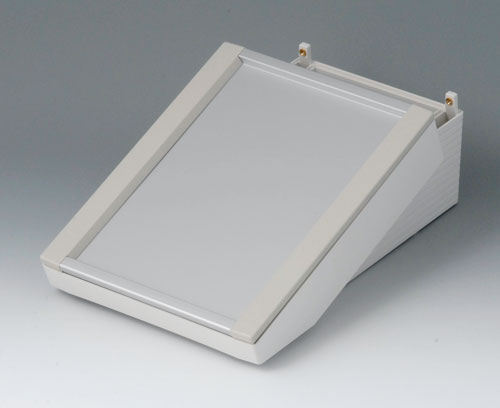

Profile plate M
Profile plate M for mounting operating elements of all kinds. Especially designed for the use with membrane keyboards. Recessed area for protecting the operating elements.
Supply1 profile plate, 4 screws, 2 cover strips
Generate Your PDF Datasheet for B4116126
Please select the product details you would like to include in the PDF.
B4016117
Version Basic housing, unmachined
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit
B4016117
DATEC-TERMINAL M, Vers. Ioff-white RAL 9002
168x272x101mm
Cover strips pebble grey RAL 7032
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 192 KB
- AutoCAD DWG-File 381 KB
- AutoCAD DXF-File 1 237 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 3 030 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008373.x_t 3 281 KB
- 00008373.STEP 8 435 KB
- 00008373.SAT 10 016 KB
(OKW product)
Usługa personalizacji: Możemy dostosować nasze obudowy do Twoich indywidualnych potrzeb. Dostarczymy je w pełni wykończone i gotowe do użycia – wystarczy, że zamontujesz w nich swoją elektronikę. Sprawdź dostępne opcje personalizacji i nie zapomnij poprosić o wycenę!
