B4113126

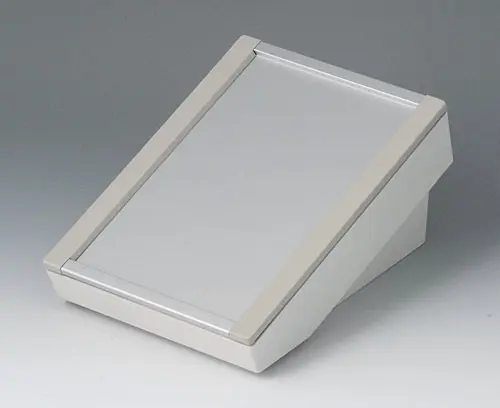

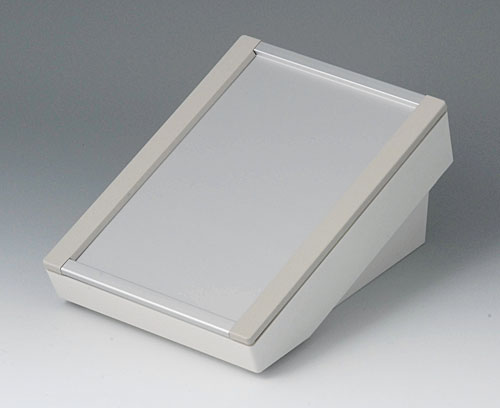

Profile plate S
Profile plate S for the mounting of operating elements of all kinds. Especially designed for the use of membrane keyboards. Recessed area for protecting the operating elements.
Supply1 profile plate, 4 screws, 2 cover strips
Generate Your PDF Datasheet for B4113126
Please select the product details you would like to include in the PDF.

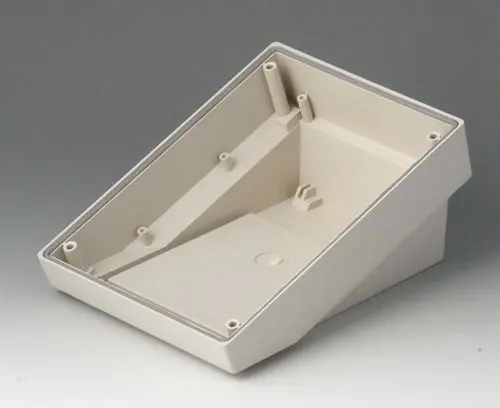

B4013117
Supply 1 basic housing, 4 screws, 4 non slip feet, 1 sealing
B4013117
DATEC-TERMINAL Soff-white RAL 9002
130x180x86mm
Cover strips pebble grey RAL 7032
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 145 KB
- AutoCAD DWG-File 144 KB
- AutoCAD DXF-File 477 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 1 348 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008368.x_t 585 KB
- 00008368.STEP 1 350 KB
- 00008368.SAT 2 751 KB
(OKW product)
Usługa personalizacji: Możemy dostosować nasze obudowy do Twoich indywidualnych potrzeb. Dostarczymy je w pełni wykończone i gotowe do użycia – wystarczy, że zamontujesz w nich swoją elektronikę. Sprawdź dostępne opcje personalizacji i nie zapomnij poprosić o wycenę!
