A9177137

Station S

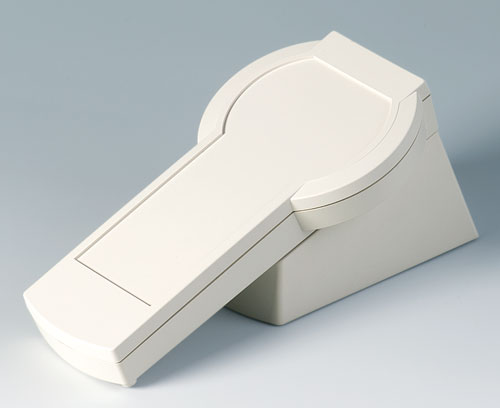

Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version

Desktop version

Supply

1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Rysunek 2D w formacie PDF
3D/2D download

Generate Your PDF Datasheet for A9177137

Please select the product details you would like to include in the PDF.

Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka

System components to complete

A9077107 DATEC-CONTROL S, Vers. I

A9077107

DATEC-CONTROL S, Vers. I Hand-Held Case for variable use with manageable operation and display area, for display and graphic modules. Recesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version With closed operating area, recess: 1.7 mm deep

Supply Top and base part, battery compartment lid, assembly kit

A9077107

DATEC-CONTROL S, Vers. I
produkt został dodany do twojej listy

off-white RAL 9002
228x117x47mm
A9077207 DATEC-CONTROL S, Vers. II

A9077207

DATEC-CONTROL S, Vers. II Hand-Held Case for variable use with manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version Top part with maximum sized cutout for display modules

Supply Top and base part, battery compartment lid, assembly kit

A9077207

DATEC-CONTROL S, Vers. II
produkt został dodany do twojej listy

off-white RAL 9002
228x117x47mm

Accessory "station"

A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

A9199005

Strain relief
produkt został dodany do twojej listy

volcano

Accessory

A9178007 Contacts, male

A9178007

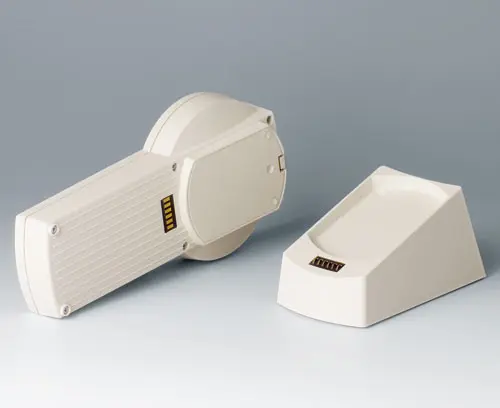

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

A9178007

Contacts, male
produkt został dodany do twojej listy
gold-plated

Opcje dostosowywania dla A9177137

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Materiał

Kolor
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
108 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
