Akcesoria do obudów
B6134533

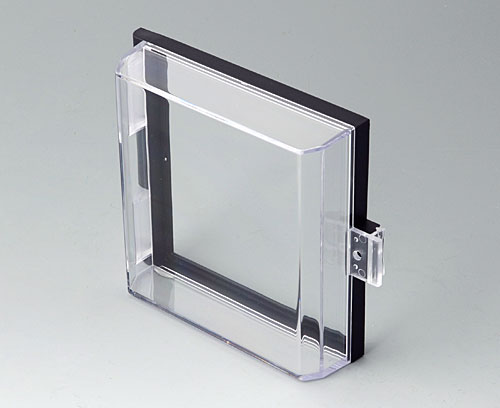

Protection cover
Protection cover for DIN-MODULAR CASE 96 x 96.
Supply1 protection cover
Rysunek 2D w formacie PDF
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B6134533
Please select the product details you would like to include in the PDF.
Dodaj do koszyka
B6034011
DIN-MODULAR CASE TYPE A, Vers. I
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.
Version With guide ridges for slide-in PCB mounting on 2 sides
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6034011
DIN-MODULAR CASE TYPE A, Vers. Iprodukt został dodany do twojej listy
black RAL 9005
96x96x57mm
B6034021
DIN-MODULAR CASE TYPE A, Vers. I
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.
Version With guide ridges for slide-in PCB mounting on 2 sides
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6034021
DIN-MODULAR CASE TYPE A, Vers. Iprodukt został dodany do twojej listy
black RAL 9005
96x96x75mm
B6034031
DIN-MODULAR CASE TYPE A, Vers. I
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.
Version With guide ridges for slide-in PCB mounting on 2 sides
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6034031
DIN-MODULAR CASE TYPE A, Vers. Iprodukt został dodany do twojej listy
black RAL 9005
96x96x100mm
B6034062
DIN-MODULAR CASE TYPE A, Vers. II
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.
Version With guide ridges for slide-in PCB mounting on 4 sides
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6034062
DIN-MODULAR CASE TYPE A, Vers. IIprodukt został dodany do twojej listy
black RAL 9005
96x96x124mm
B6034102
DIN-MODULAR CASE TYPE A, Vers. II
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.
Version With guide ridges for slide-in PCB mounting on 4 sides
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6034102
DIN-MODULAR CASE TYPE A, Vers. IIprodukt został dodany do twojej listy
black RAL 9005
96x96x179mm
Opcje dostosowywania dla B6134533
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Informacje techniczne
-
Rysunki / Informacje
- Dane zakupowe
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 163 KB
- AutoCAD DWG-File 307 KB
- AutoCAD DXF-File 931 KB
Weight/1 part
25 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Italy
Usługa personalizacji: Możemy dostosować nasze obudowy do Twoich indywidualnych potrzeb. Dostarczymy je w pełni wykończone i gotowe do użycia – wystarczy, że zamontujesz w nich swoją elektronikę. Sprawdź dostępne opcje personalizacji i nie zapomnij poprosić o wycenę!
