A2640060 ROUND KNOB 40, with line
Przewiń

A2640060

ROUND KNOB 40, with line

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.

Supply

1 round knob

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for A2640060

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

System components to complete

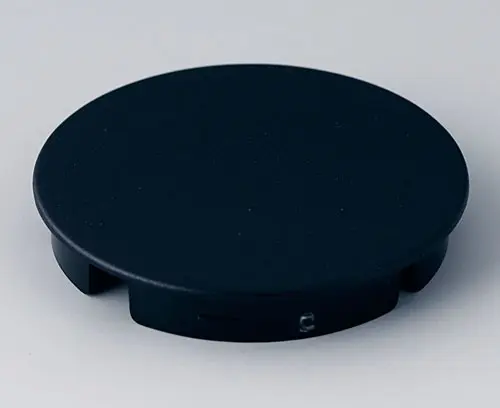

A4140000 Cover 40, without line

A4140000

Cover 40, without line Suitable for round knobs 40. Cover simply to pin up.

Supply 1 cover

Zamknij

A4140000

Cover 40, without line
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
A4140002 Cover 40, without line

A4140002

Cover 40, without line Suitable for round knobs 40. Cover simply to pin up.

Supply 1 cover

Zamknij

A4140002

Cover 40, without line
produkt został dodany do twojej listy
ABS (UL 94 HB)
red RAL F12/0-10

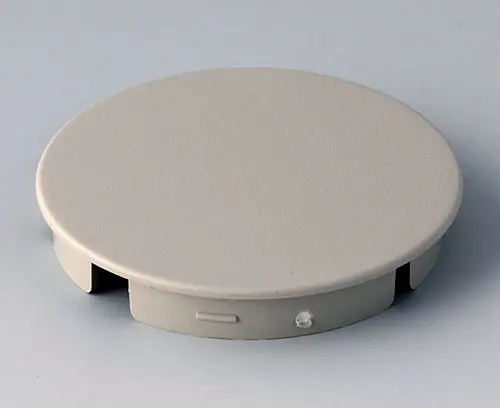

A4140007 Cover 40, without line

A4140007

Cover 40, without line Suitable for round knobs 40. Cover simply to pin up.

Supply 1 cover

Zamknij

A4140007

Cover 40, without line
produkt został dodany do twojej listy
ABS (UL 94 HB)
pebble grey RAL 7032

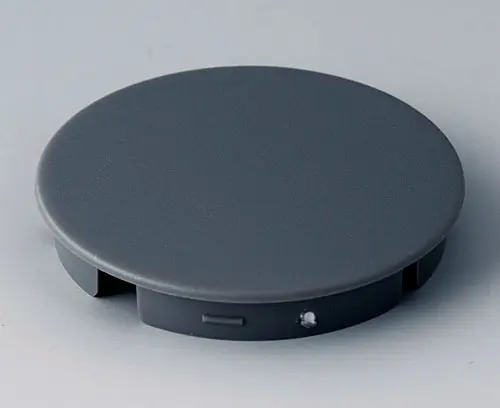

A4140008 Cover 40, without line

A4140008

Cover 40, without line Suitable for round knobs 40. Cover simply to pin up.

Supply 1 cover

Zamknij

A4140008

Cover 40, without line
produkt został dodany do twojej listy
ABS (UL 94 HB)
dusty grey RAL 7037

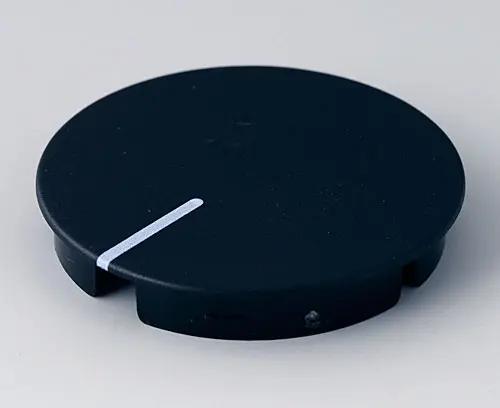

A4140100 Cover 40, with line

A4140100

Cover 40, with line Suitable for round knobs 40. Cover simply to pin up. White marking.

Supply 1 cover

Zamknij

A4140100

Cover 40, with line
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005

Accessory "screws"

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Zamknij

A6207009

Round nut M7 x 0.75
produkt został dodany do twojej listy
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Zamknij

A6210009

Round nut M10 x 0.75
produkt został dodany do twojej listy
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Zamknij

A6295009

Round nut 3/8"-32G
produkt został dodany do twojej listy
A6300000 Spanner

A6300000

Spanner For tightening the round nut.

Supply 1 spanner

Zamknij

A6300000

Spanner
produkt został dodany do twojej listy

Accessory

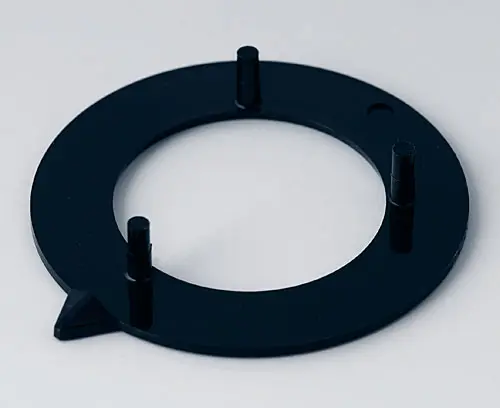

A4240000 Arrow disk 40

A4240000

Arrow disk 40 Suitable for round knob 40. Arrow disk simply to pin up.

Supply 1 arrow disk

Zamknij

A4240000

Arrow disk 40
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005

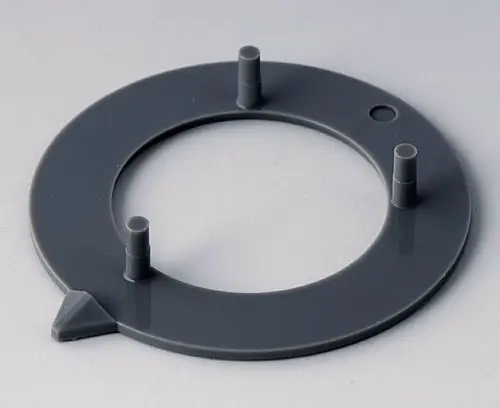

A4240008 Arrow disk 40

A4240008

Arrow disk 40

Suitable for round knob 40. Arrow disk simply to pin up.

Supply 1 arrow disk

Zamknij

A4240008

Arrow disk 40
produkt został dodany do twojej listy
ABS (UL 94 HB)
dusty grey RAL 7037
A6600064 Torsion protection 6/4.6

A6600064

Torsion protection 6/4.6 Makes torsion-free knob assembly onto profile axles 6/4.6mm possible. Suitable for round knob sizes 20 to 50.

Supply 1 torsion protection

Zamknij

A6600064

Torsion protection 6/4.6
produkt został dodany do twojej listy
A7340010 Disk 40, with line

A7340010

Disk 40, with line Suitable for round knob 40 / COM-KNOB 40. Disk simply to pin up. White marking.

Supply 1 disk

Zamknij

A7340010

Disk 40, with line
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005

Opcje dostosowywania dla A2640060

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
ABS (UL 94 HB)
Kolor
black RAL 9005
Standards
RoHS compliant
REACH compliant
Diameter
40 mm
Height
15 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
9,5 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
