B2510108
BLOB UNIT

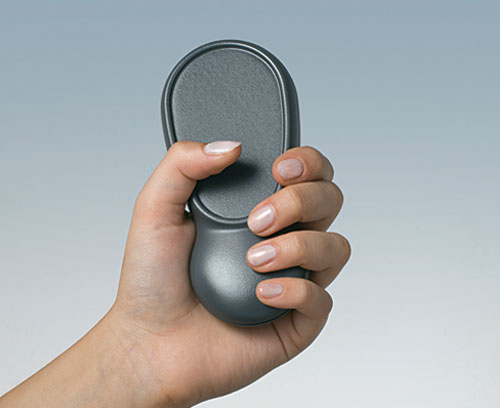

A genuine hand held enclosure that can be held and operated with one hand. Two-part enclosure design. Recessed surface for membrane keyboards. Attachment domes for a PCB in the top part.
SupplyTop and bottom parts, assembly kit
Generate Your PDF Datasheet for B2510108
Please select the product details you would like to include in the PDF.
Accessory "battery"
A9193034
Supply Polarity reversal protection device
A9193034
Polarity reversal protection device, positive terminal AAAoff-white RAL 9002
A9193036
Supply 1 battery clip
A9193036
Battery clip, AAAnickel-plated
A9193037
Version Horizontal
Supply 1 button cell holder
A9193037
Button cell holder, Ø 20 mm
A9193038
Version Horizontal
Supply 1 button cell holder
A9193038
Button cell holder, Ø 23 mm
A9193039
Version Horizontal
Supply 1 button cell holder
A9193039
Button cell holder, Ø 12 mm
A9193040
Version Horizontal
Supply 1 button cell holder
A9193040
Button cell holder, Ø 16 mmAccessory "protection"
B2610001
Supply 1 sealing
B2610001
Sealing Unit
B2610101
Version For cables Ø 5.0 - 5.9 mm
Supply 1 cable bushing
B2610101
Cable strain, 5.0 - 5.9volcano
B2610111
Version For cables Ø 4.2 - 5.0 mm
Supply 1 cable bushing
B2610111
Cable strain, 4.2 - 5.0volcano
B2610121
Version For cables Ø 3.4 - 4.2 mm
Supply 1 cable bushing
B2610121
Cable strain, 3.4 - 4.2volcano
Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Necessary accessories: sealing
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 273 KB
- AutoCAD DWG-File 1 011 KB
- AutoCAD DXF-File 3 439 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 549 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00013115.x_t 9 430 KB
- 00013115.STEP 14 038 KB
- 00013115.SAT 11 759 KB
(OKW product)
Usługa personalizacji: Możemy dostosować nasze obudowy do Twoich indywidualnych potrzeb. Dostarczymy je w pełni wykończone i gotowe do użycia – wystarczy, że zamontujesz w nich swoją elektronikę. Sprawdź dostępne opcje personalizacji i nie zapomnij poprosić o wycenę!
