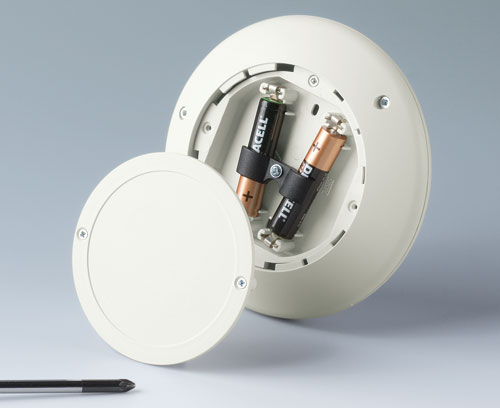

B5011857 Battery compartment lid

B5011857

Battery compartment lid

Assembly unit: suitable for all bottom parts when using battery compartment 2 x AAA (acc.), screw-down.

Supply

1 battery compartment lid, assembly kit

  • Komponenty / Akcesoria
  • Opcje dostosowywania

Wersja R

Wersja S

Wersja O

Wersja E

Minimalna ilość komponentów do skompletowania obudowy:
1 dolna i górna część E160.
1 pokrywa / pokrywa pojemnika baterii / podstawa / podstawa 30 ° lub podstawa 55 ° (w zależności od wersji dolnej części i korzystania z pojemnika baterii).

System components to complete

B5017207 Bottom and top part E160 F

B5017207

Bottom and top part E160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part E160 F, assembly kit

Zamknij

B5017207

Bottom and top part E160 F
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
160x110x38mm

Accessory "battery"

A9166001 Set of battery clips, 2 x AAA

A9166001

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 4 single contacts

Zamknij

A9166001

Set of battery clips, 2 x AAA
produkt został dodany do twojej listy
Steel
tin-plated
A9166002 Battery contact, 2 x AAA

A9166002

Battery contact, 2 x AAA In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.

Supply 1 battery contact

Zamknij

A9166002

Battery contact, 2 x AAA
produkt został dodany do twojej listy
Steel
tin-plated
B5111107 Battery compartment, 2 x AAA

B5111107

Battery compartment, 2 x AAA Application: For 2 x 1.5 V micro cells (AAA).

Supply 1 battery compartment, assembly kit

Zamknij

B5111107

Battery compartment, 2 x AAA
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002

Accessory "wall/holder"

B5111307 Wall mounting set

B5111307

Wall mounting set Suitable for all versions (except Euro Plug version), for secure wall mounting of the enclosures (machining lid/bases necessary).

Supply Wall mounting set, incl. safety screw

Zamknij

B5111307

Wall mounting set
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002

Accessory "screws"

B5111201 Set of screws

B5111201

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.

Supply 4 screws

Zamknij

B5111201

Set of screws
produkt został dodany do twojej listy

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Zamknij

A9207150

Anti-slide feet 6.5 x 2 mm
produkt został dodany do twojej listy
transparent

Opcje dostosowywania dla B5011857

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Kolor
off-white RAL 9002
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
9 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
