B5011327 ART-CASE R110 H

B5011327

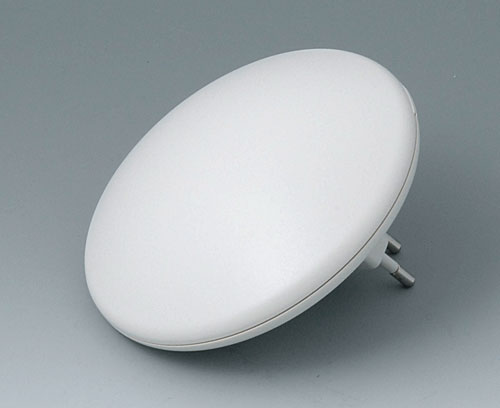

ART-CASE R110 H

Electronic case with EURO plug section according to DIN VDE 0620 part 101. High top part.
Not suitable for sockets with integrated, increased protection against contact!

Version

Bottom part "inclined" with plug section

Supply

1 bottom part, 1 plug section and 1 top part R110 H, assembly kit

  • Komponenty / Akcesoria
  • Opcje dostosowywania

Accessory "screws"

B5111201 Set of screws

B5111201

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.

Supply 4 screws

Zamknij

B5111201

Set of screws
produkt został dodany do twojej listy

Opcje dostosowywania dla B5011327

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
PC+ABS (UL 94 V-0)
Plug section
ABS (UL 94 HB)
Bottom and top part
Protection class
Kolor
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Diameter
⌀ 110 mm
Height
41 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
71 g
Customs tariff number
(OKW product)
85480090
Country of manufacture
Germany
