Akcesoria do obudów
Dodaj do koszyka Minimalna ilość komponentów do skompletowania obudowy:
1 dolna i górna część R110.
1 pokrywa / pokrywa pojemnika baterii / podstawa / podstawa 30 ° lub podstawa 55 ° (w zależności od wersji dolnej części i korzystania z pojemnika baterii).
System components to complete
B5010009
Bottom and top part R110F
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version Bottom part "level"
Supply 1 top and bottom part R110 F, assembly kit
B5010009
Bottom and top part R110Fprodukt został dodany do twojej listy
black RAL 9005
⌀110x30mm
B5010109
Bottom and top part R110 H
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version Bottom part "level"
Supply 1 top and bottom part R110 H, assembly kit
B5010109
Bottom and top part R110 Hprodukt został dodany do twojej listy
black RAL 9005
⌀110x38mm
B5010209
Bottom and top part R110 F
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version Bottom part "inclined"
Supply 1 top and bottom part R110 F, assembly kit
B5010209
Bottom and top part R110 Fprodukt został dodany do twojej listy
black RAL 9005
⌀110x38mm
B5010309
Bottom and top part R110 H
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version Bottom part "inclined"
Supply 1 top and bottom part R110 H, assembly kit
B5010309
Bottom and top part R110 Hprodukt został dodany do twojej listy
black RAL 9005
⌀110x41mm
Accessory "battery"
A9190002
Set of battery clips, 2xN/2xAA/2xAAA
For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).
Note application ART-CASE: only for base suitable (2 x AA).
Supply 1 double contact, 2 single contacts
A9190002
Set of battery clips, 2xN/2xAA/2xAAAprodukt został dodany do twojej listy
tin-plated
Accessory "protection"
A9199005
Strain relief
Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.
Supply 1 strain relief device, 2 screws
A9199005
Strain reliefprodukt został dodany do twojej listy
volcano
B5111707
Anti-rotation device
To prevent the base from being removed.
Supply Anti-rotation device, incl. screws
B5111707
Anti-rotation deviceprodukt został dodany do twojej listy
off-white RAL 9002
Accessory "wall/holder"

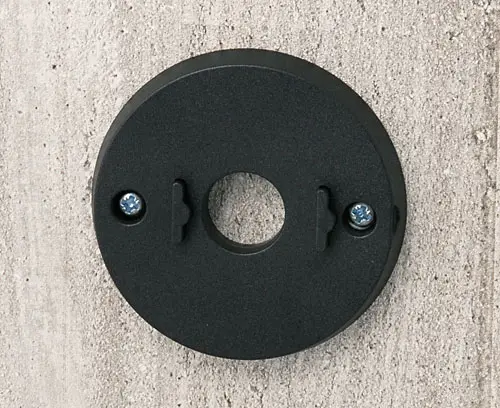

B5111309
Wall mounting set
Suitable for all versions (except Euro Plug versions), for secure wall mounting of the enclosures (machining lid/bases necessary).
Supply Wall mounting set, incl. safety screws
B5111309
Wall mounting setprodukt został dodany do twojej listy
black RAL 9005
Accessory "screws"
B5111201
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.
Supply 4 screws
B5111201
Set of screwsprodukt został dodany do twojej listy
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmprodukt został dodany do twojej listy
