A5031108

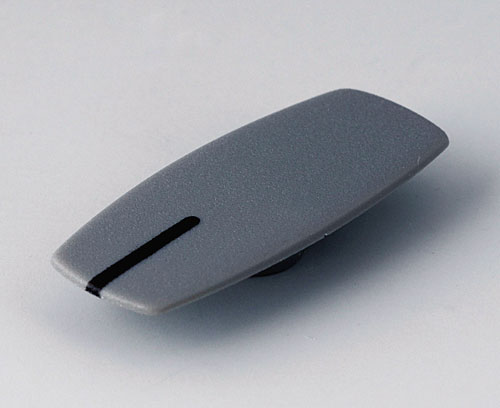

Cover 31, with line

Suitable for spindle-shaped knob 31. Cover simply to pin up. Black marking.

Supply

1 cover

Rysunek 2D w formacie PDF
3D/2D download

Generate Your PDF Datasheet for A5031108

Please select the product details you would like to include in the PDF.

Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka

System components to complete

A2431060 SPINDLE-SHAPED KNOB 31, with line

A2431060

SPINDLE-SHAPED KNOB 31, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 spindle-shaped knob

A2431060

SPINDLE-SHAPED KNOB 31, with line
produkt został dodany do twojej listy

black RAL 9005
31x16mm
Otwór 6mm
A2431068 SPINDLE-SHAPED KNOB 31, with line

A2431068

SPINDLE-SHAPED KNOB 31, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 spindle-shaped knob

A2431068

SPINDLE-SHAPED KNOB 31, with line
produkt został dodany do twojej listy

dusty grey RAL 7037
31x16mm
Otwór 6mm

Opcje dostosowywania dla A5031108

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Materiał

Kolor
dusty grey RAL 7037
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
0,4 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
