Accessori per contenitori
B1340029

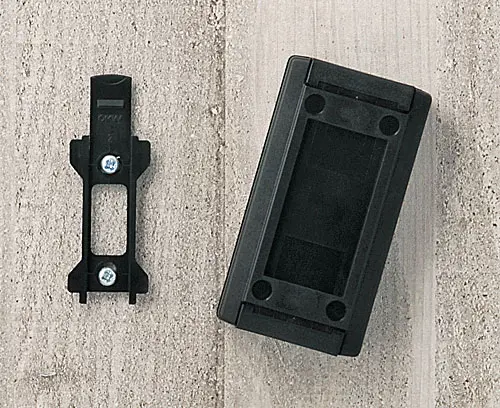

Wall suspension element for Toptec 102
Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.
Supply1 wall suspension element
Disegno PDF 2D
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B1340029
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
B1040369
TOPTEC 102, Vers. I
Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the bottom.
Version without ventilations slots.
Supply 1 case-top and base, 2 end panels
B1040369
TOPTEC 102, Vers. IProdotto aggiunto alla lista
black RAL 9005
102x54x30mm
B1040469
TOPTEC 102, Vers. II
Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the bottom.
Version with ventilations slots.
Supply 1 case-top and base, 2 end panels
B1040469
TOPTEC 102, Vers. IIProdotto aggiunto alla lista
black RAL 9005
102x54x30mm
Customising options for B1340029
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 233 KB
- AutoCAD DWG-File 622 KB
- AutoCAD DXF-File 2.142 KB
Weight/1 part
5 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B1340029 e non dimenticare di chiedere la quotazione!
