ER126059
SYNERGY R120

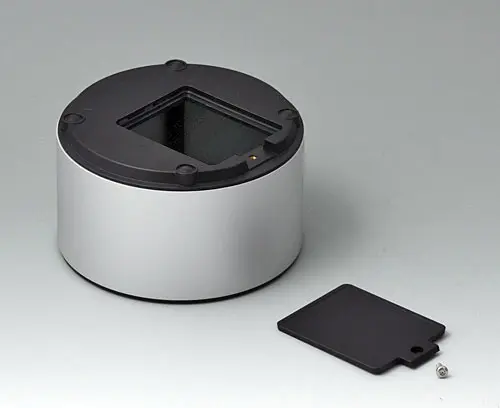

4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.
SupplyTop part, bottom part, lid, aluminium profile, assembly kit
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per ER126059
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "battery"
A9193033
Polarity reversal protection device, positive terminal AA
For AA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.
Supply Polarity reversal protection device
A9193033
Polarity reversal protection device, positive terminal AAProdotto aggiunto alla lista
off-white RAL 9002
A9193034
Polarity reversal protection device, positive terminal AAA
For AAA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.
Supply Polarity reversal protection device
A9193034
Polarity reversal protection device, positive terminal AAAProdotto aggiunto alla lista
off-white RAL 9002
A9193035
Battery clip, AA
For AA round cells. For installation on PCBs. 2 pcs required per round cell.
Supply 1 battery clip
A9193035
Battery clip, AAProdotto aggiunto alla lista
nickel-plated
A9193036
Battery clip, AAA
For AAA round cells. For installation on PCBs. 2 pcs required per round cell.
Supply 1 battery clip
A9193036
Battery clip, AAAProdotto aggiunto alla lista
nickel-plated
A9193037
Button cell holder, Ø 20 mm
For button cells with Ø 20 mm, e.g. CR2016, CR2025, CR2032. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193037
Button cell holder, Ø 20 mmProdotto aggiunto alla lista
A9193038
Button cell holder, Ø 23 mm
For button cells with Ø 23 mm, e.g. CR2320, CR2325, CR2354. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193038
Button cell holder, Ø 23 mmProdotto aggiunto alla lista
A9193039
Button cell holder, Ø 12 mm
For button cells with Ø 12 mm, e.g. CR1216, CR1220. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193039
Button cell holder, Ø 12 mmProdotto aggiunto alla lista
A9193040
Button cell holder, Ø 16 mm
For button cells with Ø 16 mm, e.g. CR1612, CR1620. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193040
Button cell holder, Ø 16 mmProdotto aggiunto alla lista
EZ040609
Battery compartment, 3 x AA
For 3 x 1.5 V mignon-cells (AA). To install a PCB above the battery compartment in the bottom part, the extender (EZ031209) is required.
Supply 1 battery compartment, set of battery clips
EZ040609
Battery compartment, 3 x AAProdotto aggiunto alla lista
black RAL 9005
Accessory "wall/holder"
EZ030109
Wall suspension element
Optional wall mounting with only one screw.
Supply 1 holder and cover plate, 2 anti-slide feet
EZ030109
Wall suspension elementProdotto aggiunto alla lista
black RAL 9005
Accessory "screws"
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Prodotto aggiunto alla lista
EZ031209
Extender kit
For increasing the height of the attachment domes for PCBs. Required when installing a PCB above the battery compartment (acc.) in the bottom part.
Supply 4 extender, 4 screws (Torx 8)
EZ031209
Extender kitProdotto aggiunto alla lista
black RAL 9005
Customising options for ER126059
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Materiale
Frame
Plastic parts
Protection class
Colore
Frame
matt anodised,
Plastic parts black RAL 9005
Plastic parts black RAL 9005
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Diametro
⌀ 120 mm
Altezza
70 mm
PCB diameter, base
⌀ 107 mm
PCB diameter, top
⌀ 111 mm
Keypad diameter
⌀ 102 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 456 KB
- AutoCAD DWG-File 835 KB
- AutoCAD DXF-File 3.148 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 1.248 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00015668.x_t 5.444 KB
- 00015668.step 11.691 KB
- 00015668.sat 18.455 KB
Weight/1 part
263 g
Customs tariff number
(OKW product)
(OKW product)
76042100
Country of manufacture
Other country
