Accessori per contenitori
B2804027

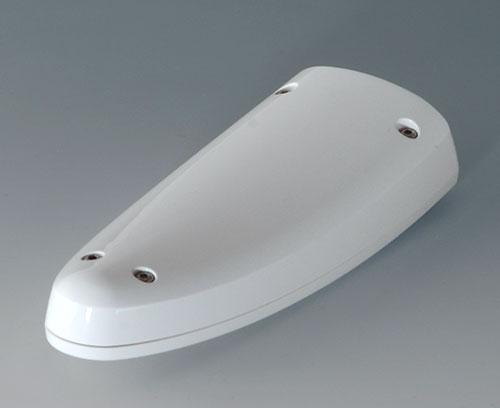

STYLE-CASE L
Two-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing (accessory). Protection class IP 40 without sealing. Attachment pillars for PCBs and components in the top and bottom parts.
Top and bottom part, assembly kit
Create la vostra scheda dati PDF per B2804027
Selezionate le informazioni prodotto per la vostra scheda dati.
Accessory "protection"
A9199005
Supply 1 strain relief device, 2 screws
A9199005
Strain reliefvolcano
B2904011
Supply 1 sealing
B2904011
Sealing L
C2353849
Flexible cable grommet to protect the cable connection, for universal use.
Please note: recommended for STYLE-CASE L without battery compartment. Subsequent machining of the bottom part of the enclosure required.
Supply 1 flexible cable grommet
C2353849
Flexible cable grommet Ø 5,3Accessory "wall/holder"
B2904031
Supply 1 piece
B2904031
Adhesive foil L
B2904037
Supply 1 holder
B2904037
Holder Ltraffic white RAL 9016
Accessory "screws"
A0304031
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Necessary accessories: sealing kit,
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 278 KB
- AutoCAD DWG-File 897 KB
- AutoCAD DXF-File 3.102 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 470 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00025736.x_t 2.579 KB
- 00025736.STEP 6.825 KB
- 00025736.SAT 8.343 KB
(OKW product)
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B2804027 e non dimenticare di chiedere la quotazione!
