B2804016
STYLE-CASE L
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.

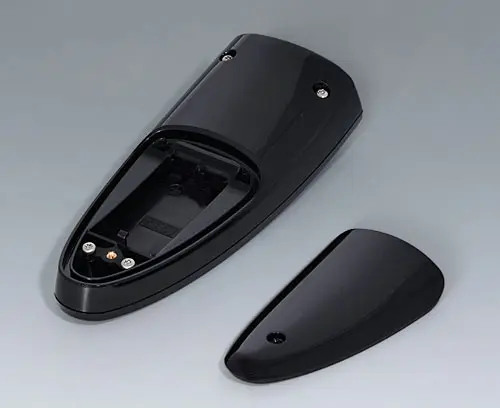

Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.
Top and bottom part, battery compartment lid, assembly kit
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B2804016
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "battery"
B2904210
Set of battery clips
For contacting 2 AA batteries.
Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"
B2904210
Set of battery clipsProdotto aggiunto alla lista
nickel-plated
Accessory "protection"
B2904111
Sealing kit L
Application: for increasing the protection class, of STYLE-CASE L.
Supply 2 sealings kit (enclosure, battery compartment)
B2904111
Sealing kit LProdotto aggiunto alla lista
Accessory "wall/holder"
B2904031
Adhesive foil L
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
B2904031
Adhesive foil LProdotto aggiunto alla lista
B2904039
Holder L
Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.
Supply 1 holder
B2904039
Holder LProdotto aggiunto alla lista
black RAL 9005
Accessory "screws"
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Prodotto aggiunto alla lista
Customising options for B2804016
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Esempi di applicazione
- Purchasing Data
Materiale
Protection class
Necessary accessories: sealing kit,
Colore
black RAL 9005
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Lunghezza
166 mm
Larghezza
64 mm
Altezza
31 mm
PCB length, base
55 mm
PCB width, base
34 mm
PCB length, top
68 mm
PCB width, top
50 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 306 KB
- AutoCAD DWG-File 1.088 KB
- AutoCAD DXF-File 3.861 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 796 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00020907.x_t 3.980 KB
- 00020907.step 9.804 KB
- 00020907.sat 11.443 KB
Weight/1 part
94 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
