STYLE-CASE M

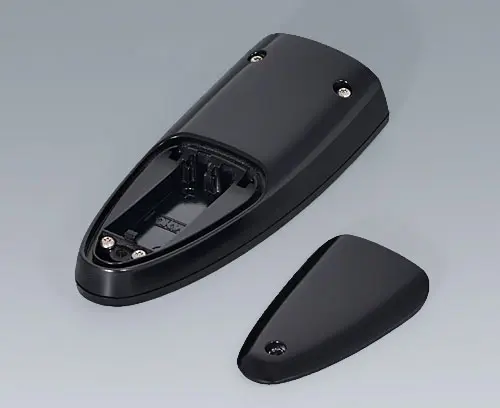

Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Top and bottom part, battery compartment lid, assembly kit
Create la vostra scheda dati PDF per B2803016
Selezionate le informazioni prodotto per la vostra scheda dati.
Accessory "battery"
A9190020
Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"
A9190020
Set of battery clipsnickel-plated
Accessory "protection"
B2903111
Application: for increasing the protection class, of STYLE-CASE M.
Supply 2 sealings kit (enclosure, battery compartment)
B2903111
Sealing kit MAccessory "wall/holder"
B2903031
Supply 1 piece
B2903031
Adhesive foil M
B2903039
Supply 1 holder
B2903039
Holder Mblack RAL 9005
Accessory "screws"
A0304031
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Necessary accessories: sealing kit,
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 412 KB
- AutoCAD DWG-File 507 KB
- AutoCAD DXF-File 1.910 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 725 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00022369.x_t 3.205 KB
- 00022369.step 8.537 KB
- 00022369.sat 10.389 KB
(OKW product)
