Accessori per contenitori
A9150118
Intermediate protection ring S

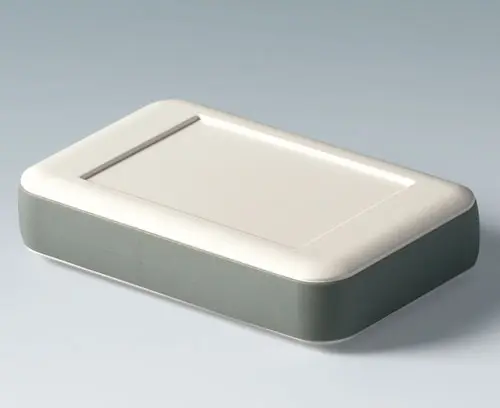

Serves as a sealing ring and impact protection and ensures 2 mm more installation height. Individual colour choice and designs on demand.
Supply1 intermediate ring
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per A9150118
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
A9050107
SOFT-CASE S
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards.Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9050107
SOFT-CASE SProdotto aggiunto alla lista
off-white RAL 9002
51x82x14mm
,
A9050108
SOFT-CASE S
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9050108
SOFT-CASE SProdotto aggiunto alla lista
lava
51x82x14mm
,
A9050209
SOFT-CASE S
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.
Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9050209
SOFT-CASE SProdotto aggiunto alla lista
black RAL 9005
51x82x14mm
,
Customising options for A9150118
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Lunghezza
54 mm
Larghezza
85 mm
Altezza
12 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 313 KB
- AutoCAD DWG-File 351 KB
- AutoCAD DXF-File 1.120 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 1.212 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008010.x_t 5.433 KB
- 00008010.STEP 12.636 KB
- 00008010.SAT 13.861 KB
Weight/1 part
8 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione A9150118 e non dimenticare di chiedere la quotazione!
