Accessori per contenitori
B4610107
SMART-CONTROL M, Vers. I

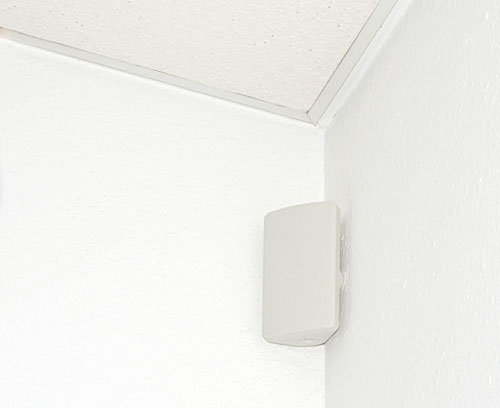

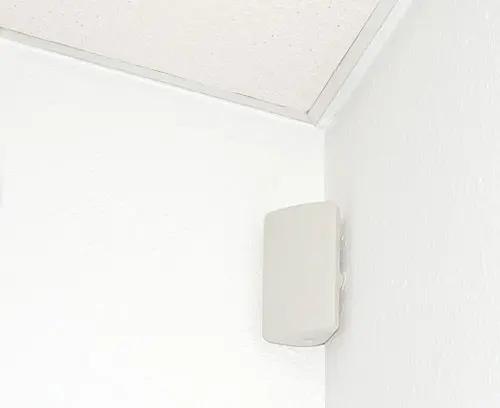

Two-part plastic enclosure with convex, curved top part. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

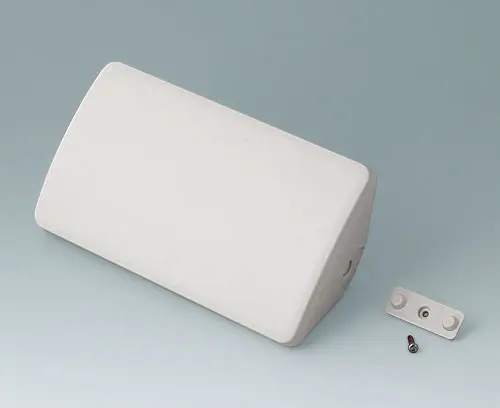

VersionCase-top without recessed operating area

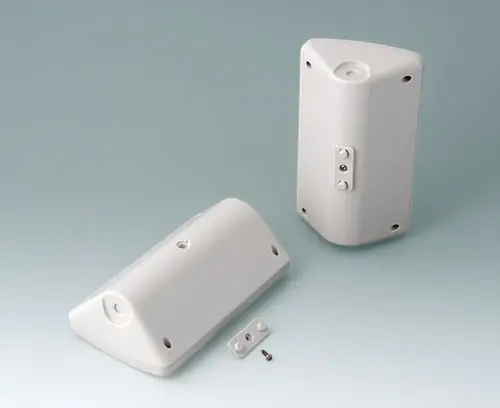

SupplyTop and bottom parts, assembly kit incl. universal adapter
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B4610107
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "station"
B4705207
Desktop stand set

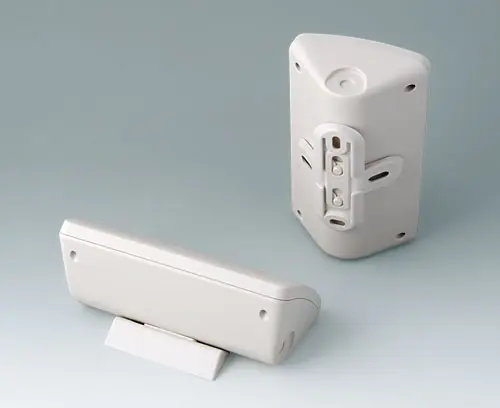

For reliable positioning on a desktop, giving an ergonomic reading angle of 45° when the enclosure is set up horizontally. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).
Supply 1 desktop stand set incl. 2 self-adhesive rubber feet
B4705207
Desktop stand setProdotto aggiunto alla lista
Accessory "protection"
B4710920
Seal M
Application: for increasing the protection class, of SMART-CONTROL M. Bottom part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4710920
Seal MProdotto aggiunto alla lista
Accessory "wall/holder"
B4705907
Wall suspension element
This element allows simple, flush installation of the enclosure to 90° inside corners or on a wall. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).
Supply 1 wall suspension element
B4705907
Wall suspension elementProdotto aggiunto alla lista
Accessory "screws"
A0325060
Self-tapping screw 2.5 x 6 mm (T8)
Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Prodotto aggiunto alla lista
Customising options for B4610107
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
