B4608207
SMART-CONTROL S, Vers. II

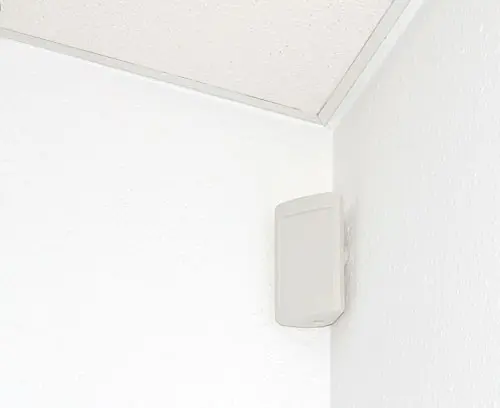

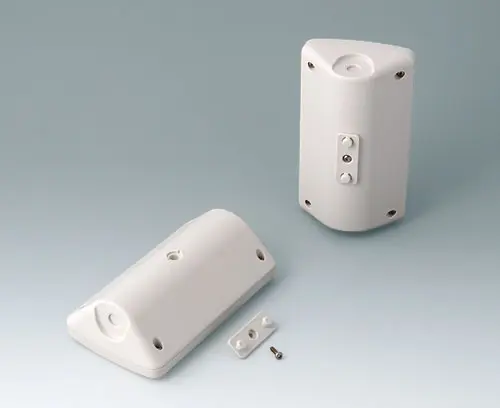

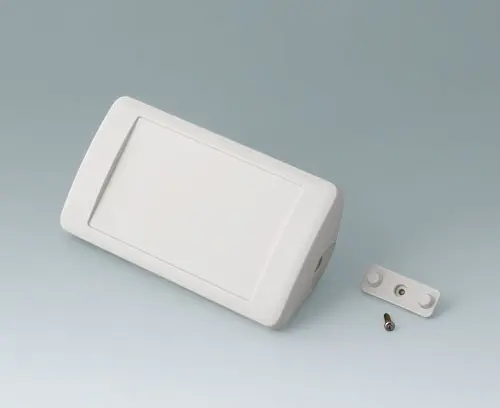

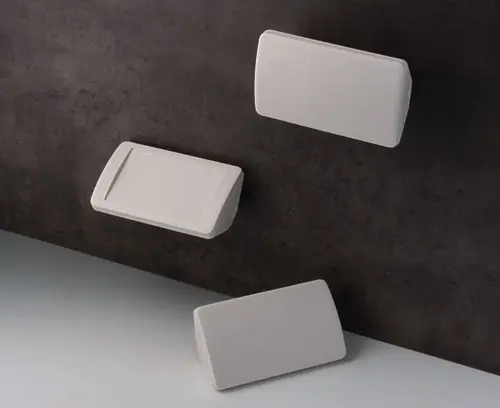

Two-part plastic enclosure with recessed panel to protect the membrane keypad / décor foil. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.
VersionCase-top with recessed operating area
SupplyTop and bottom parts, assembly kit incl. universal adapter
Create la vostra scheda dati PDF per B4608207
Selezionate le informazioni prodotto per la vostra scheda dati.
Accessory "station"
B4705207
Supply 1 desktop stand set incl. 2 self-adhesive rubber feet
B4705207
Desktop stand setAccessory "protection"
B4708920
Supply 1 seal
B4708920
Seal SAccessory "wall/holder"
B4705907
Supply 1 wall suspension element
B4705907
Wall suspension elementAccessory "screws"
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Necessary accessories: sealing,
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 352 KB
- AutoCAD DWG-File 544 KB
- AutoCAD DXF-File 1.936 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 761 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00025849.x_t 5.956 KB
- 00025849.STEP 14.193 KB
- 00025849.SAT 18.546 KB
