C6009161
SMART-BOX WIDTH 90
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per C6009161
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "protection"
C2306917
Pressure equalisation element M6x0.75
Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Supply 1 pressure equalisation element, 1 seal washer, 1 nut
C2306917
Pressure equalisation element M6x0.75Prodotto aggiunto alla lista
light grey RAL 7035
C2310917
Pressure equalisation element M10x1
Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Supply 1 pressure equalisation element, 1 seal washer, 1 nut
C2310917
Pressure equalisation element M10x1Prodotto aggiunto alla lista
light grey RAL 7035
C2316147
Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.
Supply 1 cable grommet
C2316147
Cable grommetProdotto aggiunto alla lista
light grey RAL 7035
C6100006
Security plug
For use with lead tags.
Supply 1 plug
C6100006
Security plugProdotto aggiunto alla lista
red
C6100016
Set of security
For use with lead tags.
Supply 2 plugs
C6100016
Set of securityProdotto aggiunto alla lista
red
Accessory "screws"
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Prodotto aggiunto alla lista
A0308031
Self-tapping screws 3 x 8 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308031
Self-tapping screws 3 x 8 mm (PZ1)Prodotto aggiunto alla lista
A0308132
Self-tapping screw 3 x 8 mm (T10)
Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)Prodotto aggiunto alla lista
Accessory
C2299018
Case feet
When using the case for desktop applications.
Supply 4 case feet
C2299018
Case feetProdotto aggiunto alla lista
Customising options for C6009161
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni

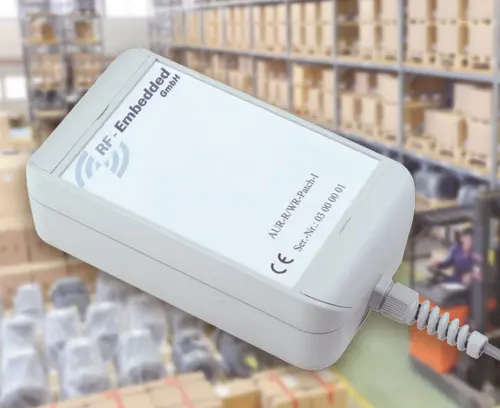

- Esempi di applicazione
- Purchasing Data
Materiale
Protection class
Colore
light grey RAL 7035
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Lunghezza
160 mm
Larghezza
90 mm
Altezza
50 mm
PCB length, base
121 mm
PCB width, base
81 mm
PCB length, top
118 mm
PCB width, top
79 mm
Keypad length
115,2 mm
Keypad width
81,9 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 276 KB
- AutoCAD DWG-File 669 KB
- AutoCAD DXF-File 2.554 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 2.372 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008156.x_t 5.650 KB
- 00008156.STEP 8.044 KB
- 00008156.SAT 9.744 KB
Weight/1 part
200 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione C6009161 e non dimenticare di chiedere la quotazione!
