Accessori per contenitori
B5403207

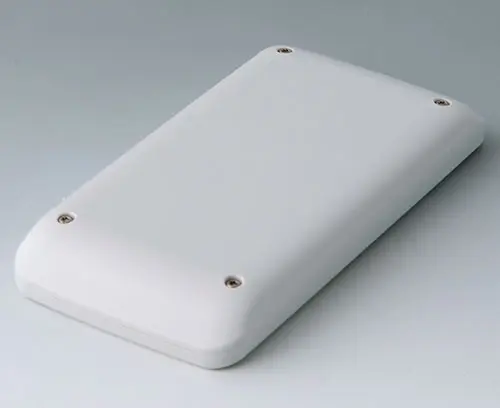

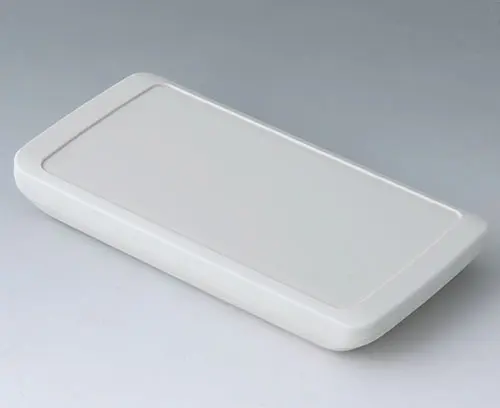

SLIM-CASE M, Vers. II
2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Recessed operating panel for applications with decorative product labels. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.
VersionOperating panel recessed 1 mm
SupplyTop and bottom part, assembly kit
Create la vostra scheda dati PDF per B5403207
Selezionate le informazioni prodotto per la vostra scheda dati.
Accessory "protection"
B5503039
Supply 1 seal
B5503039
Seal Mblack
Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Necessary accessories: sealing,
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 343 KB
- AutoCAD DWG-File 706 KB
- AutoCAD DXF-File 2.694 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 459 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00026930.x_t 4.270 KB
- 00026930.step 9.136 KB
- 00026930.sat 14.813 KB
(OKW product)
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B5403207 e non dimenticare di chiedere la quotazione!
