Accessori per contenitori
A9060009
HAND-HELD-BOX P, Vers. I
Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.
VersionWith lateral recess for rocker switch
SupplyTop and base part, battery compartment lid, assembly kit
Create la vostra scheda dati PDF per A9060009
Selezionate le informazioni prodotto per la vostra scheda dati.
Accessory "battery"
A9160003
Application: for a 9 V flat battery (PP3).
Supply 1 plug-in contact
A9160003
Plug-in contact, 1 x 9 V (PP3)Accessory "protection"
A9160002
Supply 1 cover plug
A9160002

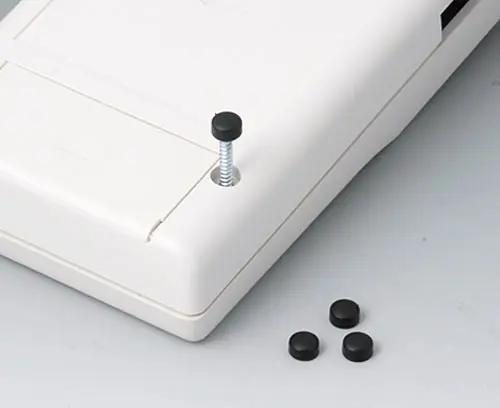

Cover plug
A9160004
Supply 1 display window
A9160004
Display window Ptransparent
60x30x1mm
A9160006
Supply 1 adhesive foil
A9160006
Adhesive foil P/MAccessory "carrying"
A9100002
Supply 1 ring eyelet
A9100002
Ring eyeletvolcano
Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0306031
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Accessory
A9160009
Supply 1 switch cap
A9160009
Switch capblack RAL 9005
A9210290
Supply 2 rubber feet
A9210290
Anti-slide feet 9.5 x 3.8 mm
A9250809
Supply 1 tilt foot bar, assembly kit
A9250809

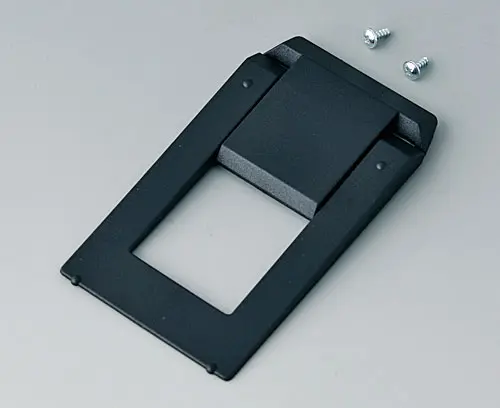

Tilt foot barblack RAL 9005
A9250819
Supply 1 tilt foot bar, assembly kit
A9250819

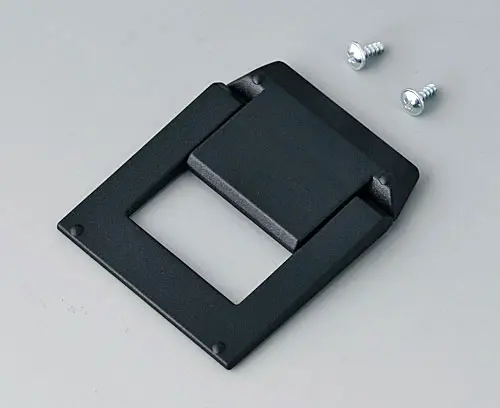

Tilt foot barblack RAL 9005
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 200 KB
- AutoCAD DWG-File 296 KB
- AutoCAD DXF-File 1.079 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 914 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00007946.x_t 1.583 KB
- 00007946.STEP 3.667 KB
- 00007946.SAT 5.160 KB
(OKW product)
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione A9060009 e non dimenticare di chiedere la quotazione!
