Accessori per contenitori
B6606100
Lid, 12 modules
Locking lid for protecting the display and operating elements.
Supply1 lid
Create la vostra scheda dati PDF per B6606100
Selezionate le informazioni prodotto per la vostra scheda dati.
B6506110
Version With perforations for max. 64 terminal blocks 5.0 or plug headers 4 x 8 poles and 4 x 7 poles
Supply 1 base part with locking clip, 1 top part
B6506110
RAILTEC B, 12 modules, Vers. Vlight grey RAL 7035
210x90x58mm

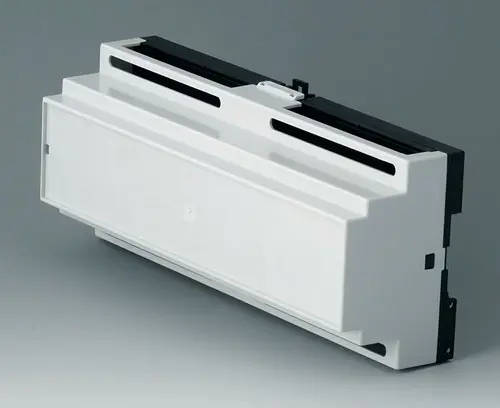

B6506111
Version For terminal blocks 5.0 / 5.08 (64 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6506111
RAILTEC B, 12 modules, Vers. Ilight grey RAL 7035
210x90x58mm
B6506112
Version For plug header (4 x 8-poles and 4 x 7-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6506112
RAILTEC B, 12 modules, Vers. IIlight grey RAL 7035
210x90x58mm
B6506113
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6506113
RAILTEC B, 12 modules, Vers. IIIlight grey RAL 7035
210x90x58mm
B6506114
Version For terminal blocks 5.0 / 5.08 (64 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6506114
RAILTEC B, 12 modules, Vers. Ilight grey RAL 7035
210x90x58mm
B6506115
Version For plug header (4 x 8-poles and 4 x 7-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6506115
RAILTEC B, 12 modules, Vers. IIlight grey RAL 7035
210x90x58mm

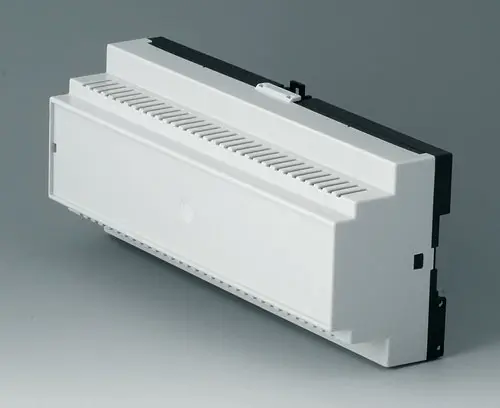

B6506116
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6506116
RAILTEC B, 12 modules, Vers. IIIlight grey RAL 7035
210x90x58mm
B6506117
Version For terminal blocks 5.0 / 5.08 (32 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6506117
RAILTEC B, 12 modules, Vers. IVlight grey RAL 7035
210x90x58mm

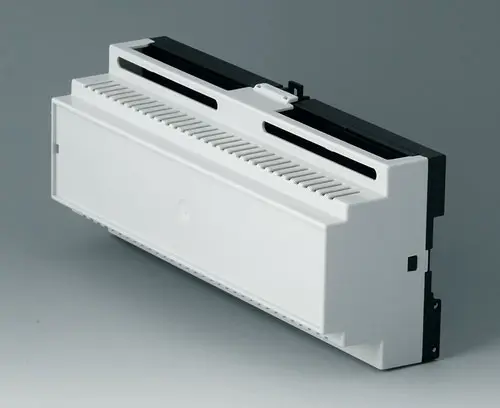

B6506118
Version For terminal blocks 5.0 / 5.08 (32 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6506118
RAILTEC B, 12 modules, Vers. IVlight grey RAL 7035
210x90x58mm
B6506119
Version With perforations for max. 64 terminal blocks 5.0 or plug headers 4 x 8 poles and 4 x 7 poles
Supply 1 base part with locking clip, 1 top part
B6506119
RAILTEC B, 12 modules, Vers. Vlight grey RAL 7035
210x90x58mm
B6506121
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6506121
RAILTEC B, 12 modules, Vers. VIlight grey RAL 7035
210x90x58mm
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 82 KB
- AutoCAD DWG-File 252 KB
- AutoCAD DXF-File 711 KB
(OKW product)
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B6606100 e non dimenticare di chiedere la quotazione!
