B4422107

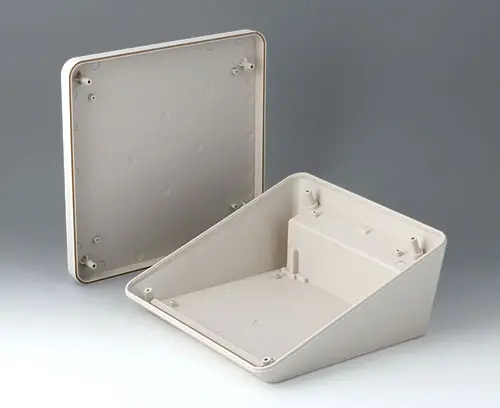

PROTEC 220, Vers. I
Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
SupplyTop and bottom parts, assembly kit including 4 self-adhesive rubber feet
Create la vostra scheda dati PDF per B4422107
Selezionate le informazioni prodotto per la vostra scheda dati.
Accessory "protection"
B4522030
Application: for increasing the protection class, of PROTEC 220. Top part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4522030
Sealing 220Accessory "wall/holder"
B4522101
Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.
Supply 1 wall suspension element and 2 screws
B4522101
Wall suspension element 220Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Necessary accessories: sealing
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 293 KB
- AutoCAD DWG-File 1.068 KB
- AutoCAD DXF-File 3.795 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 536 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00023915.x_t 4.202 KB
- 00023915.STEP 10.756 KB
- 00023915.SAT 10.797 KB
(OKW product)
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B4422107 e non dimenticare di chiedere la quotazione!
