B4418207
PROTEC 180, Vers. II

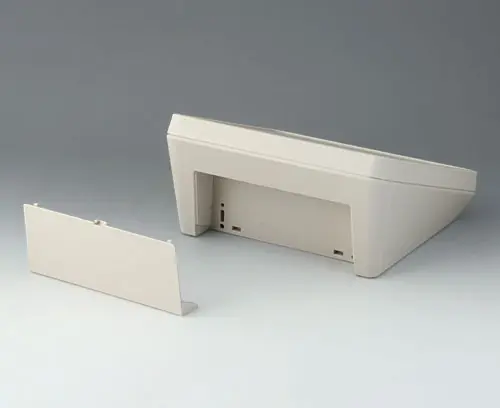

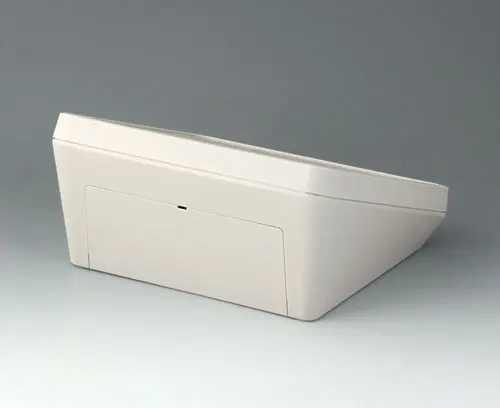

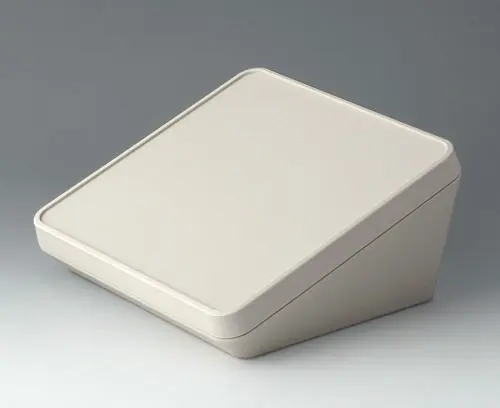

Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

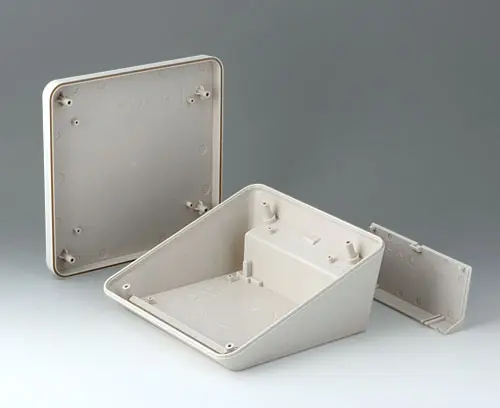

SupplyTop and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet
Create la vostra scheda dati PDF per B4418207
Selezionate le informazioni prodotto per la vostra scheda dati.
Accessory "protection"
B4518030
Application: for increasing the protection class, of PROTEC 180. Top part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4518030
Sealing 180Accessory "wall/holder"
B4518101
Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.
Supply 1 wall suspension element and 2 screws
B4518101
Wall suspension element 180Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Necessary accessories: sealing
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 300 KB
- AutoCAD DWG-File 1.070 KB
- AutoCAD DXF-File 3.768 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 735 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00025087.x_t 5.878 KB
- 00025087.STEP 15.171 KB
- 00025087.SAT 14.192 KB
