PROTEC 180, Vers. I

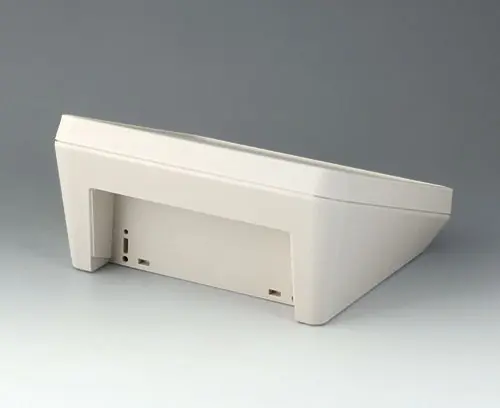

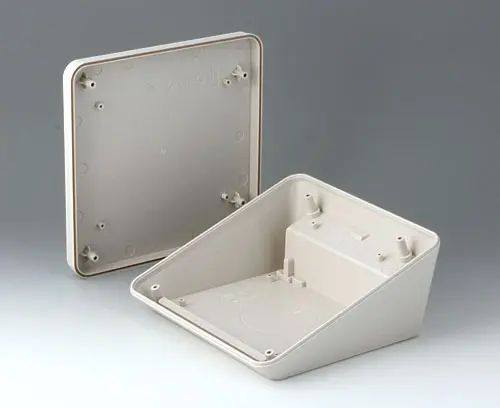

Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
SupplyTop and bottom parts, assembly kit including 4 self-adhesive rubber feet
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B4418107
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "protection"
B4518030
Sealing 180
Application: for increasing the protection class, of PROTEC 180. Top part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4518030
Sealing 180Prodotto aggiunto alla lista
Accessory "wall/holder"
B4518101
Wall suspension element 180
Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.
Supply 1 wall suspension element and 2 screws
B4518101
Wall suspension element 180Prodotto aggiunto alla lista
Accessory "screws"
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Prodotto aggiunto alla lista
A0325060
Self-tapping screw 2.5 x 6 mm (T8)
Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Prodotto aggiunto alla lista
Customising options for B4418107
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Esempi di applicazione
- Purchasing Data
Materiale
Protection class
Necessary accessories: sealing
Colore
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Larghezza
180 mm
Profindità
180 mm
Altezza
92 mm
PCB length, base
102 mm
PCB width, base
150 mm
PCB length, top
166 mm
PCB width, top
166 mm
Keypad length
169,8 mm
Keypad width
169,8 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 313 KB
- AutoCAD DWG-File 1.114 KB
- AutoCAD DXF-File 3.953 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 629 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00024499.x_t 4.380 KB
- 00024499.STEP 11.711 KB
- 00024499.SAT 11.529 KB
Weight/1 part
320 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
