Accessori per contenitori
B3318918

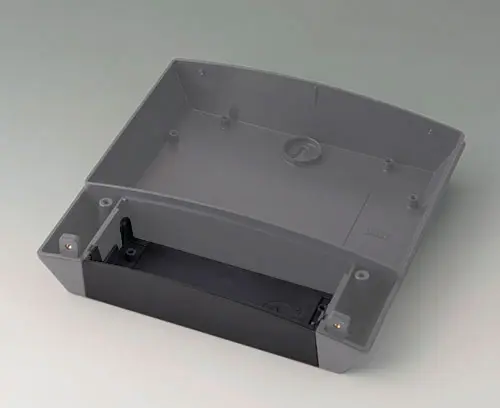

Infill cover 180
With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.
Supply1 infill cover
Create la vostra scheda dati PDF per B3318918
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
System components to complete
B3218101
NET-BOX 180, Vers. I
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3218101
NET-BOX 180, Vers. IProdotto aggiunto alla lista
light grey RAL 7035
180x180x48,5mm
,
B3218201
NET-BOX 180, Vers. II
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3218201
NET-BOX 180, Vers. IIProdotto aggiunto alla lista
light grey RAL 7035
180x180x48,5mm
Accessory "screws"
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Prodotto aggiunto alla lista
Customising options for B3318918
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
PCB length, base
44 mm
PCB width, base
118 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
37 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
