Accessori per contenitori
B3123167

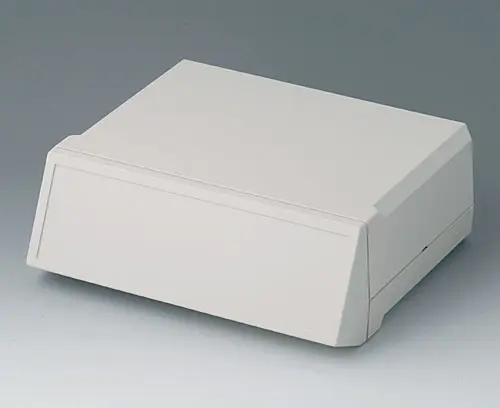

Sloping control panel L, flat/high
Suitable for MOTEC L B3023127 and B3023147 with high top and flat base part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.
Supply1 sloping control panel
Disegno PDF 2D
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B3123167
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
B3023127
MOTEC L, flat/high
Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.
Supply 1 top and base part, 4 self-adhesive case feet
B3023127
MOTEC L, flat/highProdotto aggiunto alla lista
off-white RAL 9002
235x165x85mm
B3023147
MOTEC L, with handle bar
Desk top case with handle bar in version with flat base and high top part. With 30 degress indexing. Front and rear part open. Screw tower for PCBs and vertical guides for mounting panels. Front panels as accessory.
Supply 1 top and base part, handle bar, 4 self-adhesive case feet
B3023147
MOTEC L, with handle barProdotto aggiunto alla lista
off-white RAL 9002
235x165x85mm
Customising options for B3123167
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Keypad length
214,3 mm
Keypad width
62,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 253 KB
- AutoCAD DWG-File 828 KB
- AutoCAD DXF-File 2.966 KB
Weight/1 part
102 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B3123167 e non dimenticare di chiedere la quotazione!
