B3015127
MOTEC S, flat/high
Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.
Supply1 top and base part, 4 self-adhesive case feet
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B3015127
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory to complete
B3115110
Front / rear panel S
Suitable for MOTEC S B3015127 with flat base and high top part.
Supply 1 front panel
B3115110
Front / rear panel SProdotto aggiunto alla lista
matt anodised
136x57x1,5mm
B3115167

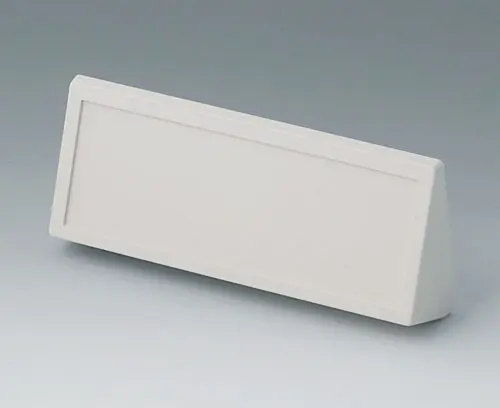

Sloping control panel S, flat/high
Suitable for MOTEC S B3015127 with flat base and high top part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.
Supply 1 sloping control panel
B3115167
Sloping control panel S, flat/highProdotto aggiunto alla lista
off-white RAL 9002
Accessory "screws"
A9199008
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.
Supply 4 screws
A9199008
Set of screwsProdotto aggiunto alla lista
Customising options for B3015127
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Esempi di applicazione
- Purchasing Data
Materiale
Protection class
Colore
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Larghezza
155 mm
Profindità
105 mm
Altezza
65 mm
PCB length, base
128 mm
PCB width, base
90 mm
Keypad length
132 mm
Keypad width
53 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 190 KB
- AutoCAD DWG-File 488 KB
- AutoCAD DXF-File 1.576 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 885 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008548.x_t 3.560 KB
- 00008548.step 7.188 KB
- 00008548.sat 6.455 KB
Weight/1 part
156 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
