Accessori per contenitori

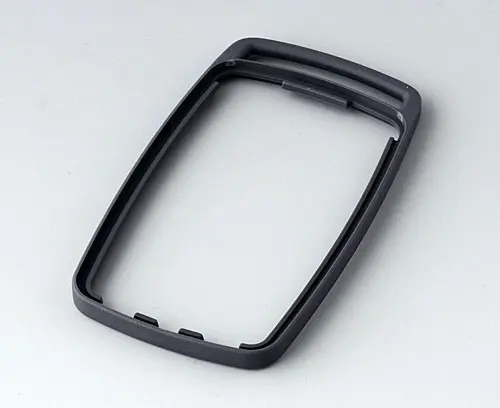

B9004702
Intermediate ring EM
Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.
Supply1 intermediate ring EM
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B9004702
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
System components to complete

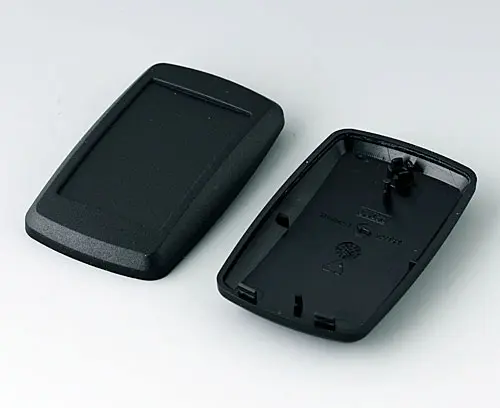

B9004806
Bottom and top part EM
Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EM as separate article necessary.
Supply 1 top and bottom part EM, 1 self-tapping screw
B9004806
Bottom and top part EMProdotto aggiunto alla lista
black RAL 9005
68x42x18mm

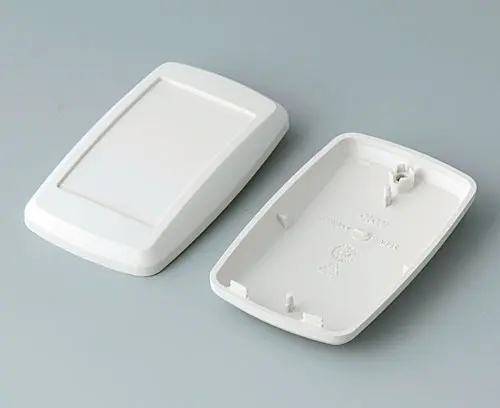

B9004807
Bottom and top part EM
Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EM as separate article necessary.
Supply 1 top and bottom part EM, 1 self-tapping screw
B9004807
Bottom and top part EMProdotto aggiunto alla lista
off-white RAL 9002
68x42x18mm

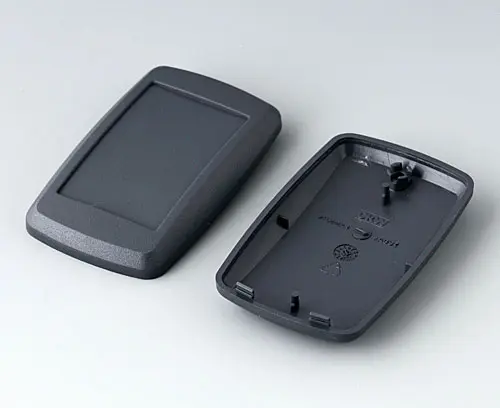

B9004808
Bottom and top part EM
Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EM as separate article necessary.
Supply 1 top and bottom part EM, 1 self-tapping screw
B9004808
Bottom and top part EMProdotto aggiunto alla lista
lava
68x42x18mm

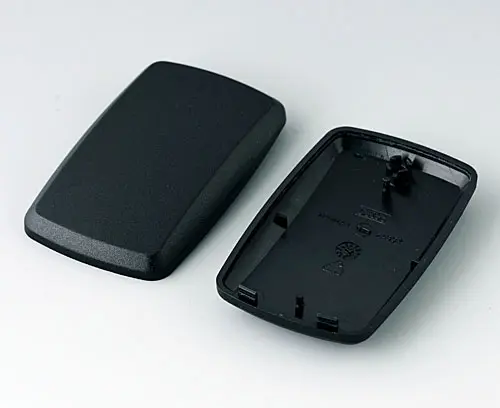

B9004856
Bottom and top part EM
Assembly unit: Modern, flat styling. Easy to carry. Fixing supports for PCBs/components in the case bottom. Intermediate ring EM as separate article necessary.
Supply 1 top and bottom part EM, 1 self-tapping screw
B9004856
Bottom and top part EMProdotto aggiunto alla lista
black RAL 9005
68x42x18mm

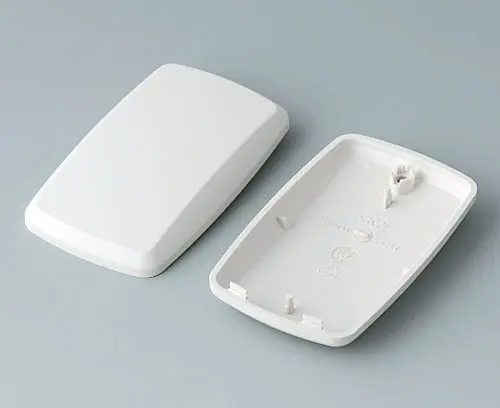

B9004857
Bottom and top part EM
Assembly unit: Modern, flat styling. Easy to carry. Fixing supports for PCBs/components in the case bottom. Intermediate ring EM as separate article necessary.
Supply 1 top and bottom part EM, 1 self-tapping screw
B9004857
Bottom and top part EMProdotto aggiunto alla lista
off-white RAL 9002
68x42x18mm
B9004858
Bottom and top part EM
Assembly unit: Modern, flat styling. Easy to carry. Fixing supports for PCBs/components in the case bottom. Intermediate ring EM as separate article necessary.
Supply 1 top and bottom part EM, 1 self-tapping screw
B9004858
Bottom and top part EMProdotto aggiunto alla lista
lava
68x42x18mm
Accessory "carrying"
A9164001
Key ring
Version: diameter = 20.5 mm.
Supply 1 key ring
A9164001
Key ringProdotto aggiunto alla lista
nickel-plated
20,5mm
B9100063
Carrying strap, textile lanyard
Textile lanyard with loop attachment.
ATTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!
Supply 1 lanyard
B9100063
Carrying strap, textile lanyardProdotto aggiunto alla lista
860mm
B9100073
Carrying strap, textile lanyard
Textile lanyard with snap safety clip.
Supply 1 lanyard
B9100073
Carrying strap, textile lanyardProdotto aggiunto alla lista
914x16mm
Customising options for B9004702
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 275 KB
- AutoCAD DWG-File 355 KB
- AutoCAD DXF-File 1.130 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 239 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00012604.x_t 426 KB
- 00012604.STEP 998 KB
- 00012604.SAT 948 KB
Weight/1 part
1,5 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B9004702 e non dimenticare di chiedere la quotazione!
