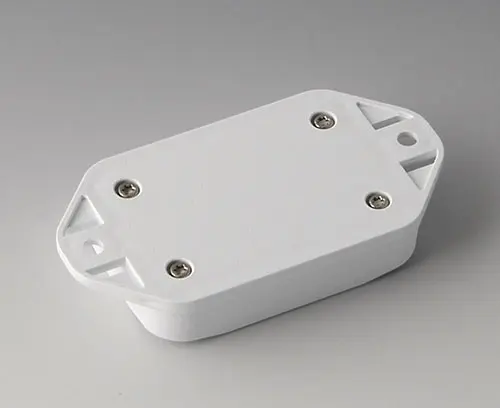

MINI-DATA-BOX EF40, flat, with flanges
2-part plastic enclosure with flat top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Bottom part with flanges, top part flat
SupplyTop and bottom parts, assembly kit
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B1822127
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "protection"
B1922101
Sealing E40/EF40
Use: increases the protection class of MINI-DATA-BOX E40 and EF40. Fits to the groove in the bottom part of the enclosure.
Supply 1 seal
B1922101
Sealing E40/EF40Prodotto aggiunto alla lista
Customising options for B1822127
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Materiale
Protection class
Necessary accessories: sealing,
Colore
traffic white RAL 9016
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Lunghezza
60 mm
Larghezza
40 mm
Altezza
15 mm
PCB length, base
52 mm
PCB width, base
32 mm
PCB length, top
52 mm
PCB width, top
32 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 284 KB
- AutoCAD DWG-File 432 KB
- AutoCAD DXF-File 1.588 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 505 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00028539.x_t 1.788 KB
- 00028539.step 4.248 KB
- 00028539.sat 6.023 KB
Weight/1 part
18 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
