B1804228

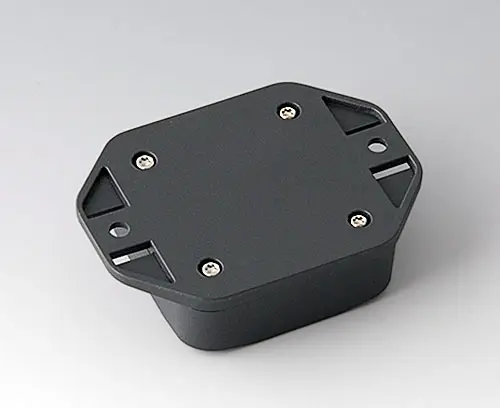

MINI-DATA-BOX SF50, high, with flanges
2-part plastic enclosure with high top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Bottom part with flanges, top part high
SupplyTop and bottom parts, assembly kit
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B1804228
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "protection"
B1904101
Sealing S50/SF50
Use: increases the protection class of MINI-DATA-BOX S50 and SF50. Fits to the groove in the bottom part of the enclosure.
Supply 1 seal
B1904101
Sealing S50/SF50Prodotto aggiunto alla lista
Customising options for B1804228
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Materiale
Protection class
Necessary accessories: sealing,
Colore
anthracite grey RAL 7016
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Lunghezza
50 mm
Larghezza
50 mm
Altezza
20 mm
PCB length, base
42 mm
PCB width, base
42 mm
PCB length, top
42 mm
PCB width, top
42 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 283 KB
- AutoCAD DWG-File 390 KB
- AutoCAD DXF-File 1.415 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 520 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00028536.x_t 1.812 KB
- 00028536.step 4.082 KB
- 00028536.sat 5.768 KB
Weight/1 part
21 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
