Accessori per contenitori
A2440068
SPINDLE-SHAPED KNOB 40, with line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.
1 spindle-shaped knob
Create la vostra scheda dati PDF per A2440068
Selezionate le informazioni prodotto per la vostra scheda dati.
System components to complete
A5040000
Supply 1 cover
A5040000

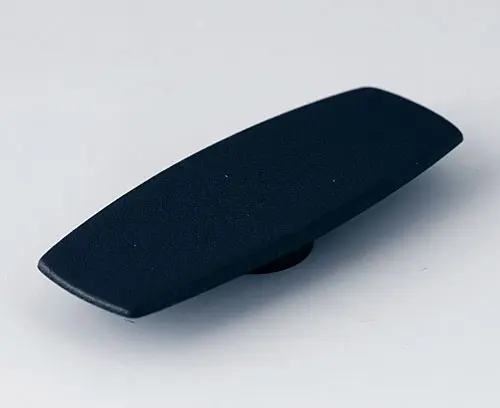

Cover 40, without lineblack RAL 9005
A5040008
Supply 1 cover
A5040008

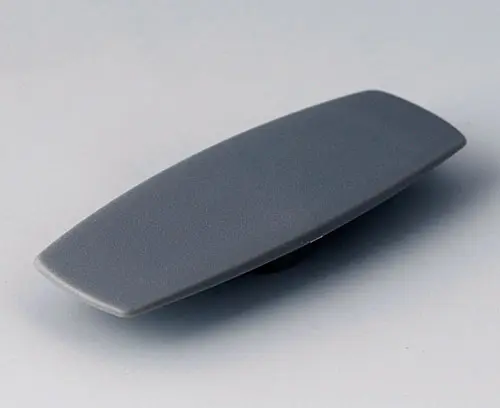

Cover 40, without linedusty grey RAL 7037
A5040100
Supply 1 cover
A5040100

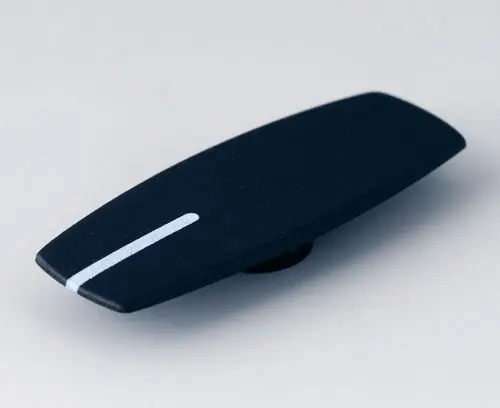

Cover 40, with lineblack RAL 9005
A5040108
Supply 1 cover
A5040108

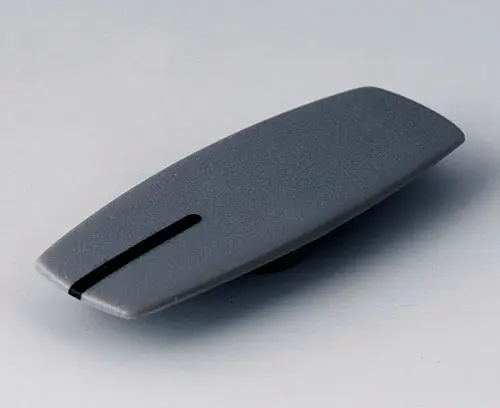

Cover 40, with linedusty grey RAL 7037
Accessory "screws"
A5140000
Supply 1 nut cover
A5140000
Nut cover 40, without lineblack RAL 9005
A6207009
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6207009
Round nut M7 x 0.75
A6210009
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6210009
Round nut M10 x 0.75
A6295009
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6295009
Round nut 3/8"-32G
A6300000
Supply 1 spanner
A6300000
SpannerDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 112 KB
- AutoCAD DWG-File 181 KB
- AutoCAD DXF-File 625 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 431 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00027213.x_t 348 KB
- 00027213.step 821 KB
- 00027213.sat 703 KB
(OKW product)
