B7040217

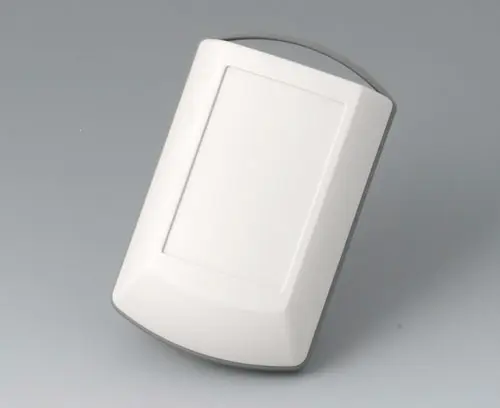

ERGO-CASE XS
Three-part enclosure in ergonomic design. Easy to carry. Carrying strap and hand strap as accessories.TPE ring for a pleasant touch sensation. Fastening pillars and fixing supports for PCBs and integrated parts in the bottom and top part. Recessed operating area for the protection of the membrane keyboard.
VersionTPE ring with one eyelet hole
Supplytop and bottom part, ring, assembly kit
Create la vostra scheda dati PDF per B7040217
Selezionate le informazioni prodotto per la vostra scheda dati.
Accessory "carrying"
B9100063
ATTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!
Supply 1 lanyard
B9100063
Carrying strap, textile lanyard860mm
B9100073
Supply 1 lanyard
B9100073
Carrying strap, textile lanyard914x16mm
Bottom and top part
Intermediate ring
Intermediate ring volcano
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 210 KB
- AutoCAD DWG-File 440 KB
- AutoCAD DXF-File 1.486 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 2.603 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00013246.x_t 4.985 KB
- 00013246.STEP 9.607 KB
- 00013246.SAT 13.600 KB
(OKW product)
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B7040217 e non dimenticare di chiedere la quotazione!
