Accessori per contenitori
A9092107
DIATEC XS

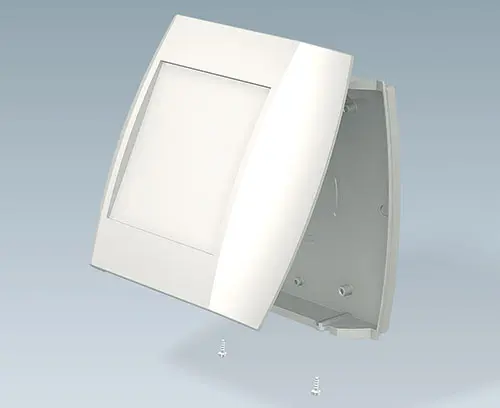

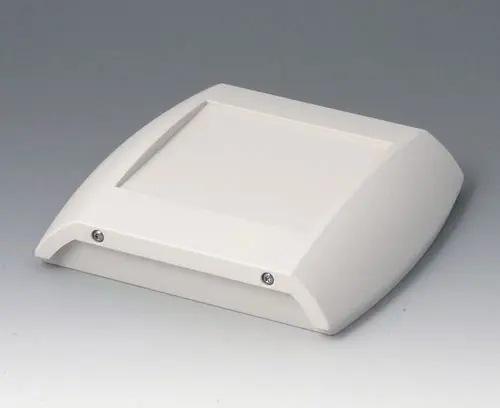

Two-part case. The bottom part can be fixed directly to the wall, the top part is fixed by Torx T10 stainless steel screws from above or below. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated battery compartment for 2 x AA.
SupplyTop and bottom part, assembly kit
Create la vostra scheda dati PDF per A9092107
Selezionate le informazioni prodotto per la vostra scheda dati.
Accessory "battery"
A9190015
Supply 1 single contact positive, 1 single contact negative
A9190015
Set of battery clips, 2 x AAnickel-plated
Accessory "wall/holder"
B1360048
Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit
B1360048
Wall suspension elementspebble grey RAL 7032
Accessory
A9207150
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 447 KB
- AutoCAD DWG-File 621 KB
- AutoCAD DXF-File 2.293 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 626 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00010101.x_t 4.047 KB
- 00010101.STEP 8.691 KB
- 00010101.SAT 7.595 KB
(OKW product)
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione A9092107 e non dimenticare di chiedere la quotazione!
