Accessori per contenitori
B4130126

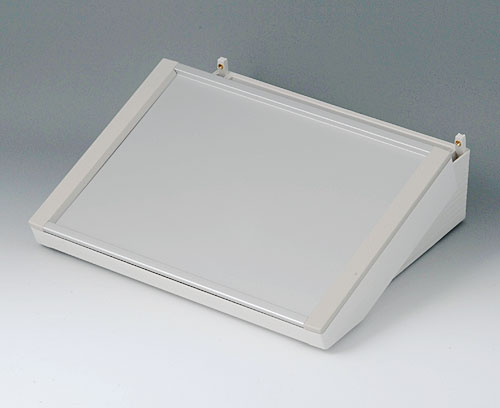

Profile plate L
Profile plate L for mounting operating elements of all kinds. Especially designed for the use with membrane keyboards. Recessed area for protecting the operating elements.
Supply1 profile plate, 4 screws, 2 cover strips
Create la vostra scheda dati PDF per B4130126
Selezionate le informazioni prodotto per la vostra scheda dati.
B4030117
Version Basic housing, unmachined
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit
B4030117
DATEC-TERMINAL L, Vers. Ioff-white RAL 9002
302x272x101mm
Cover strips pebble grey RAL 7032
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 185 KB
- AutoCAD DWG-File 257 KB
- AutoCAD DXF-File 927 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 1.989 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008377.x_t 661 KB
- 00008377.STEP 1.563 KB
- 00008377.SAT 3.193 KB
(OKW product)
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B4130126 e non dimenticare di chiedere la quotazione!
