Accessori per contenitori
B4113126

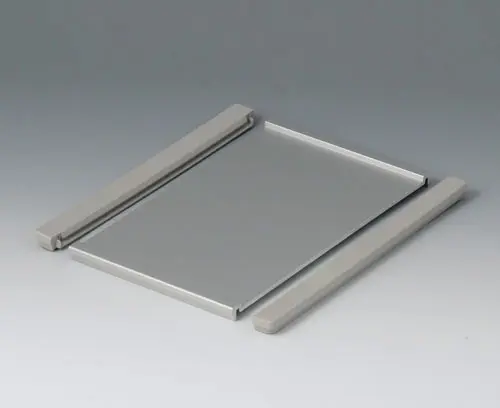

Profile plate S
Profile plate S for the mounting of operating elements of all kinds. Especially designed for the use of membrane keyboards. Recessed area for protecting the operating elements.
Supply1 profile plate, 4 screws, 2 cover strips
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B4113126
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
B4013117

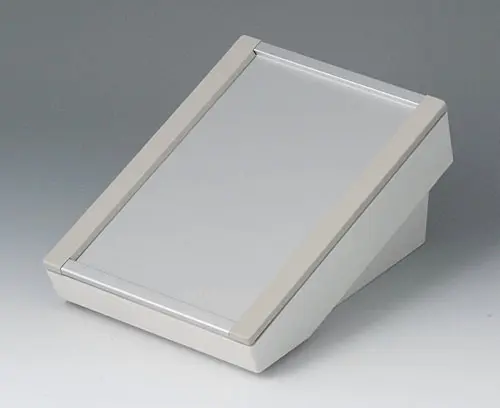

DATEC-TERMINAL S
Basic case with ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate Eurocards 100 x 160 mm.
Supply 1 basic housing, 4 screws, 4 non slip feet, 1 sealing
B4013117
DATEC-TERMINAL SProdotto aggiunto alla lista
off-white RAL 9002
130x180x86mm
Customising options for B4113126
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Materiale
Colore
Profile plate
matt anodised,
Cover strips pebble grey RAL 7032
Cover strips pebble grey RAL 7032
Standards
Larghezza
130 mm
Profindità
180 mm
Altezza
8 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 145 KB
- AutoCAD DWG-File 144 KB
- AutoCAD DXF-File 477 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 1.348 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008368.x_t 585 KB
- 00008368.STEP 1.350 KB
- 00008368.SAT 2.751 KB
Weight/1 part
165 g
Customs tariff number
(OKW product)
(OKW product)
76042990
Country of manufacture
Germany
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B4113126 e non dimenticare di chiedere la quotazione!
