B4016117
DATEC-TERMINAL M, Vers. I
Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards 100 x 160 mm.
VersionBasic housing, unmachined
Supply1 basic housing, 4 screws, 4 non slip feet, sealing kit
Create la vostra scheda dati PDF per B4016117
Selezionate le informazioni prodotto per la vostra scheda dati.
Accessory to complete
B4016417
Supply 1 lid, 2 screws M3
B4016417
Lid M closed, flatoff-white RAL 9002
134x62x24mm
B4016457
Supply 1 lid, 2 screws M3
B4016457
Lid M closed, highoff-white RAL 9002
134x67x38mm
B4016617
Supply 1 cover, assembly kit
B4016617
Cover M, flatoff-white RAL 9002
168x220x29mm
B4016621
Supply 1 cover, assembly kit
B4016621
Cover M, flattransparent
168x220x29mm
B4016631
Supply 1 cover, assembly kit
B4016631
Cover M, convextransparent
168x220x29mm
B4016637
Supply 1 cover, assembly kit
B4016637
Cover M, convexoff-white RAL 9002
168x220x29mm
B4016657
Supply 1 cover, assembly kit
B4016657
Cover M, highoff-white RAL 9002
168x220x50mm
B4016671
Supply 1 cover strip
B4016671
Cover strip M / Ltransparent
B4016677
Supply 1 cover strip
B4016677
Cover strip M / Loff-white RAL 9002
B4116106
Supply 1 front panel, 4 screws diameter 5.0 mm
B4116106

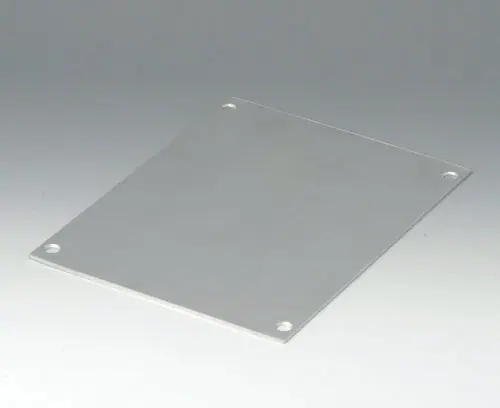

Front panel MSmatt anodised
165,4x217,4x2mm
B4116116
Supply 1 front panel, 4 screws diameter 3 mm
B4116116
Front panel MHmatt anodised
128x209x2mm
B4116126
Supply 1 profile plate, 4 screws, 2 cover strips
B4116126

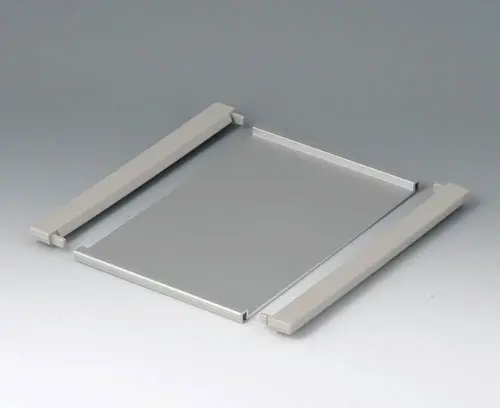

Profile plate Mmatt anodised
168x220x8mm
Accessory "wall/holder"
B4116147
Supply 1 wall suspension element, 2 screws M3
B4116147
Wall suspension element Mgalvanized
214x126x12mm
Necessary accessories: cover / cover convex and closed lid
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 256 KB
- AutoCAD DWG-File 557 KB
- AutoCAD DXF-File 1.999 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 2.067 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008188.x_t 2.553 KB
- 00008188.STEP 6.790 KB
- 00008188.SAT 7.156 KB
(OKW product)
