A9077207

DATEC-CONTROL S, Vers. II

Hand-Held Case for variable use with manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version

Top part with maximum sized cutout for display modules

Supply

Top and base part, battery compartment lid, assembly kit

Disegno PDF 2D
Vista 3D in PDF
3D/2D download

Create la vostra scheda dati PDF per A9077207

Selezionate le informazioni prodotto per la vostra scheda dati.

Aggiungi al carrello Aggiungi al carrello Aggiungi al carrello
Prodotto aggiunto alla lista
continua o Vai al carrello

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

A9160003

Plug-in contact, 1 x 9 V (PP3)
Prodotto aggiunto alla lista
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

A9174006

Set of battery clips, 1 x 9 V
Prodotto aggiunto alla lista

tin-plated
A9177310 Battery compartment, 1 x 9 V

A9177310

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

A9177310

Battery compartment, 1 x 9 V
Prodotto aggiunto alla lista
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

A9345217

Set of battery compartment, 4 x AA
Prodotto aggiunto alla lista

off-white RAL 9002

Accessory "station"

A9177137 Station S

A9177137

Station S Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

A9177137

Station S
Prodotto aggiunto alla lista

off-white RAL 9002
A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

A9178007

Contacts, male
Prodotto aggiunto alla lista
gold-plated
A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

A9199005

Strain relief
Prodotto aggiunto alla lista

volcano

Accessory "protection"

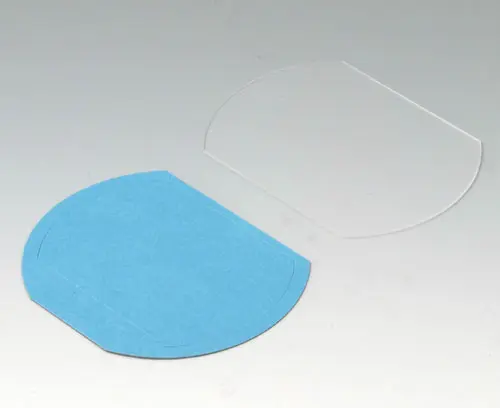

A9177001 Display window S

A9177001

Display window S The display window protects the installed display and achieves protection class within the display area. Without printing.

Supply 1 display window, 1 adhesive foil

A9177001

Display window S
Prodotto aggiunto alla lista

clear
A9177006 Sealing kit S

A9177006

Sealing kit S Application: for increasing the protection class, of DATEC-CONTROL S.

Supply 1 sealing kit

A9177006

Sealing kit S
Prodotto aggiunto alla lista

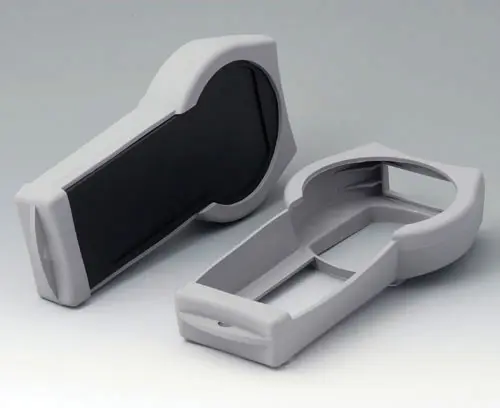

A9177008 Protector S

A9177008

Protector S Special protector for DATEC-CONTROL S. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

A9177008

Protector S
Prodotto aggiunto alla lista

volcano

Accessory "wall/holder"

A9226227 Wall suspension element

A9226227

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

A9226227

Wall suspension element
Prodotto aggiunto alla lista

off-white RAL 9002

Accessory

A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

A9178008

Contacts, female
Prodotto aggiunto alla lista
gold-plated

Customising options for A9077207

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Materiale

Protection class

Necessary accessories: sealing kit, display window (set with adhesive foil)
Colore
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Lunghezza
228 mm
Larghezza
117 mm
Altezza
47 mm
PCB length, base
214 mm
PCB width, base
62 mm
PCB length, top
213 mm
PCB width, top
60 mm
Display length, base
54 mm
Display width, base
79 mm
Keypad length
169,5 mm
Keypad width
59,7 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 5.637 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
193 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
