Accessori per contenitori
A9107507
Station L

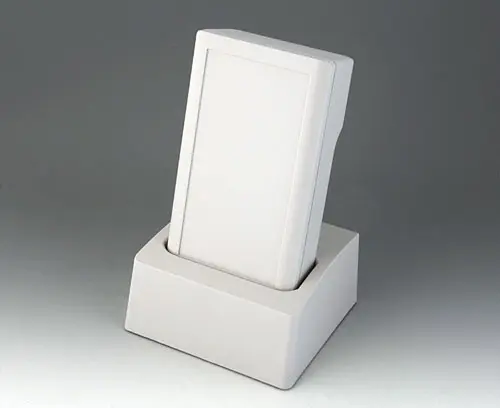

Base for the practical storage of DATEC-COMPACT L, with and without battery compartment. Ideal for charging mobile devices and transmitting data.
Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

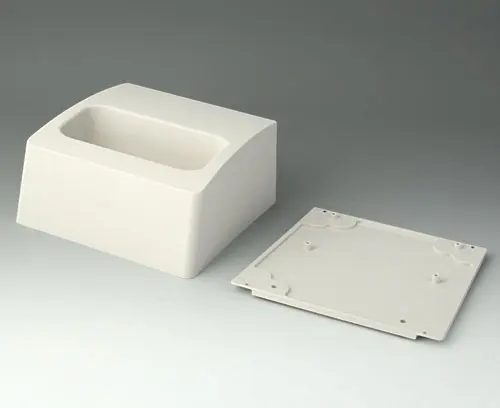

Station with bottom panel, rubber feet, assembly kit
Create la vostra scheda dati PDF per A9107507
Selezionate le informazioni prodotto per la vostra scheda dati.
System components to complete
A9007107
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9007107
DATEC-COMPACT Loff-white RAL 9002
206x110x47mm
A9007117
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9007117
DATEC-COMPACT Loff-white RAL 9002
206x110x47mm
A9007207
Version With battery compartment 3 x AA
Supply Top and bottom part, battery compartment lid, assembly kit
A9007207
DATEC-COMPACT Loff-white RAL 9002
206x110x47mm
A9007217
Version With battery compartment 3 x AA
Supply Top and bottom part, battery compartment lid, assembly kit
A9007217
DATEC-COMPACT Loff-white RAL 9002
206x110x47mm
Accessory "station"
A9193031
Supply 1 spring contact
A9193031
Spring contactAccessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 302 KB
- AutoCAD DWG-File 342 KB
- AutoCAD DXF-File 1.266 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 1.322 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00017138.x_t 14.562 KB
- 00017138.step 29.195 KB
- 00017138.sat 38.757 KB
(OKW product)
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione A9107507 e non dimenticare di chiedere la quotazione!
