Accessori per contenitori
A9105507
Station S

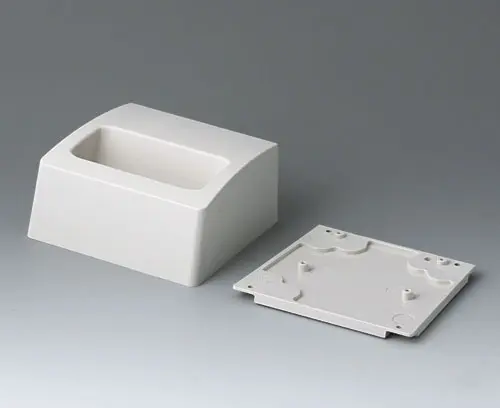

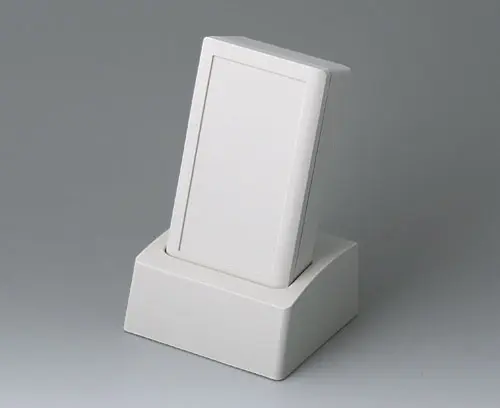

Base for the practical storage of DATEC-COMPACT S, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).
SupplyStation with bottom panel, rubber feet, assembly kit
Create la vostra scheda dati PDF per A9105507
Selezionate le informazioni prodotto per la vostra scheda dati.
System components to complete
A9005107
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9005107
DATEC-COMPACT Soff-white RAL 9002
136x74x32mm
A9005117
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9005117
DATEC-COMPACT Soff-white RAL 9002
136x74x32mm
A9005207
Version With battery compartment 3 x AAA
Supply Top and bottom part, battery compartment lid, assembly kit
A9005207
DATEC-COMPACT Soff-white RAL 9002
136x74x32mm
A9005217
Version With battery compartment 3 x AAA
Supply Top and bottom part, battery compartment lid, assembly kit
A9005217
DATEC-COMPACT Soff-white RAL 9002
136x74x32mm
Accessory "station"
A9193031
Supply 1 spring contact
A9193031
Spring contactAccessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 419 KB
- AutoCAD DWG-File 469 KB
- AutoCAD DXF-File 1.593 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 1.296 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00016606.x_t 13.001 KB
- 00016606.step 25.713 KB
- 00016606.sat 30.969 KB
(OKW product)
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione A9105507 e non dimenticare di chiedere la quotazione!
