Accessori per contenitori
A9006107
DATEC-COMPACT M

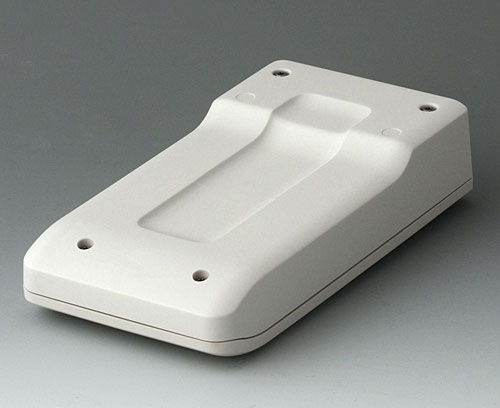

2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
VersionWithout battery compartment
SupplyTop and bottom part, assembly kit
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per A9006107
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "station"
A9106507
Station M
Base for the practical storage of DATEC-COMPACT M, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).
Supply Station with bottom panel, rubber feet, assembly kit
A9106507
Station MProdotto aggiunto alla lista
off-white RAL 9002
A9193031
Spring contact
Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 15 A. 1.5 mm stroke, 1,7 N. Extremely low contact resistance.
Supply 1 spring contact
A9193031
Spring contactProdotto aggiunto alla lista
Accessory "wall/holder"
A9106627
Holder M
Special holder for DATEC-COMPACT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
A9106627
Holder MProdotto aggiunto alla lista
off-white RAL 9002
Accessory "screws"
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Prodotto aggiunto alla lista
A0325060
Self-tapping screw 2.5 x 6 mm (T8)
Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Prodotto aggiunto alla lista
Accessory
A9193030
Contact pin
Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.
Supply 1 contact pin
A9193030
Contact pinProdotto aggiunto alla lista
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmProdotto aggiunto alla lista
Customising options for A9006107
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Materiale
Protection class
Colore
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Lunghezza
172 mm
Larghezza
92 mm
Altezza
39 mm
PCB length, base
133 mm
PCB width, base
77 mm
PCB length, top
134 mm
PCB width, top
80 mm
Keypad length
131,5 mm
Keypad width
69,3 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 302 KB
- AutoCAD DWG-File 627 KB
- AutoCAD DXF-File 2.301 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 484 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00015216.x_t 4.713 KB
- 00015216.step 11.800 KB
- 00015216.sat 13.814 KB
Weight/1 part
158 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
