Accessori per contenitori
A9005208
DATEC-COMPACT S

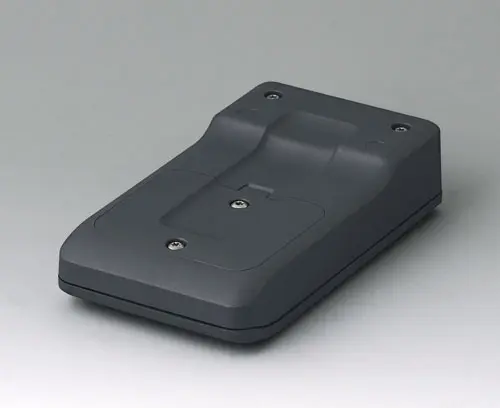

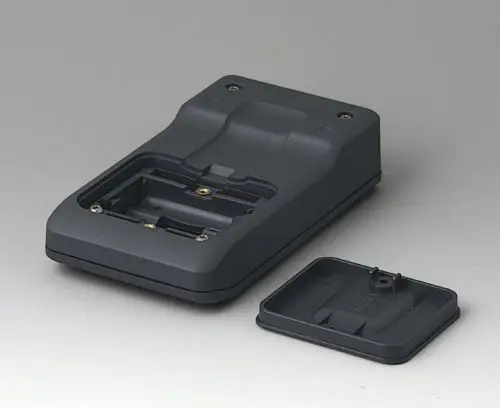

3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AAA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
VersionWith battery compartment 3 x AAA
SupplyTop and bottom part, battery compartment lid, assembly kit
Create la vostra scheda dati PDF per A9005208
Selezionate le informazioni prodotto per la vostra scheda dati.
Accessory "battery"
A9190024
Supply 1 double contacts right, 1 double contacts left, 1 single contact positive, 1 single contact negative
A9190024
Set of battery clips, 3 x AAAnickel-plated
Accessory "station"
A9105508
Supply Station with bottom panel, rubber feet, assembly kit
A9105508
Station Slava
A9193031
Supply 1 spring contact
A9193031
Spring contactAccessory "wall/holder"
A9105628
Supply 1 holder
A9105628
Holder Slava
Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Accessory
A9193030
Supply 1 contact pin
A9193030
Contact pin
A9207150
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 322 KB
- AutoCAD DWG-File 687 KB
- AutoCAD DXF-File 2.561 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 887 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00016004.x_t 8.497 KB
- 00016004.step 16.354 KB
- 00016004.sat 16.755 KB
(OKW product)
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione A9005208 e non dimenticare di chiedere la quotazione!
