Accessori per contenitori
B7546209

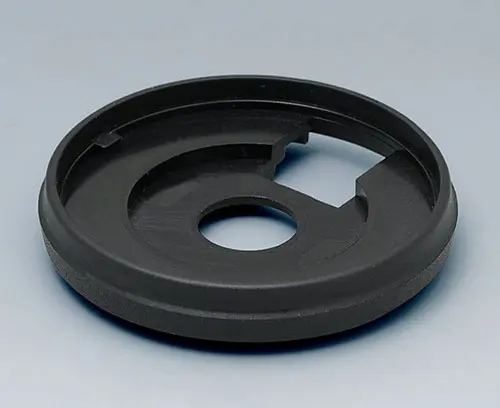

Base 46
Suitable for all CONTROL-KNOBS 46. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 46, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 46 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.
1 base
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B7546209
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
System components to complete
B7146061

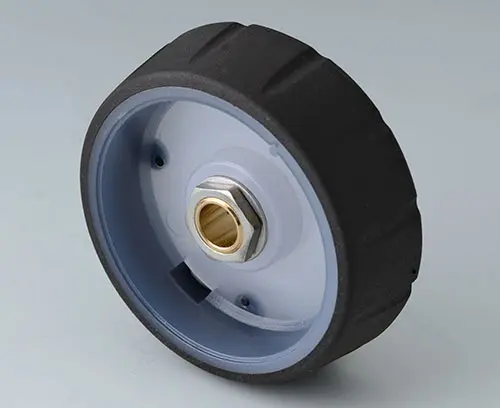

CONTROL-KNOBS 46, optional illumination
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Version With optional illumination – translucent optic ring on the top surface
Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)
B7146061
CONTROL-KNOBS 46, optional illuminationProdotto aggiunto alla lista
nero
46x14,7mm
Foro assiale 6mm
B7146062

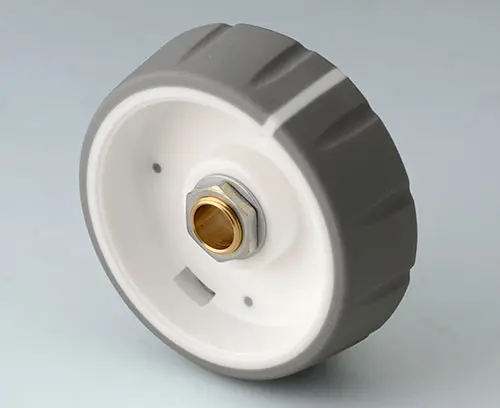

CONTROL-KNOBS 46
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Version Traffic white colour optic ring on the top surface
Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)
B7146062
CONTROL-KNOBS 46Prodotto aggiunto alla lista
nero
46x14,7mm
Foro assiale 6mm
B7146063
CONTROL-KNOBS 46, optional illumination
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Version With optional illumination – translucent optic ring on the top surface
Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)
B7146063
CONTROL-KNOBS 46, optional illuminationProdotto aggiunto alla lista
volcano
46x14,7mm
Foro assiale 6mm
B7146064
CONTROL-KNOBS 46
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Version Traffic white colour optic ring on the top surface
Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)
B7146064
CONTROL-KNOBS 46Prodotto aggiunto alla lista
volcano
46x14,7mm
Foro assiale 6mm
B7146631
CONTROL-KNOBS 46, optional illumination
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Version With optional illumination – translucent optic ring on the top surface
Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)
B7146631
CONTROL-KNOBS 46, optional illuminationProdotto aggiunto alla lista
nero
46x14,7mm
Foro assiale 1/4″
B7146632

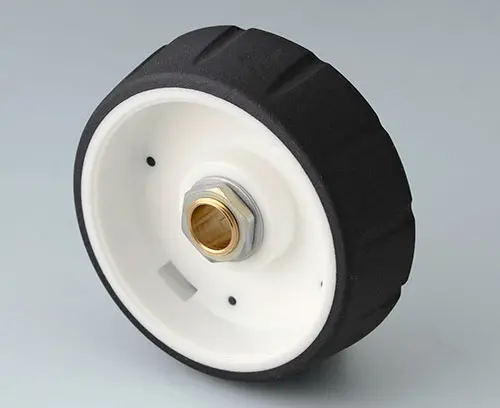

CONTROL-KNOBS 46
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Version Traffic white colour optic ring on the top surface
Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)
B7146632
CONTROL-KNOBS 46Prodotto aggiunto alla lista
nero
46x14,7mm
Foro assiale 1/4″
B7146633

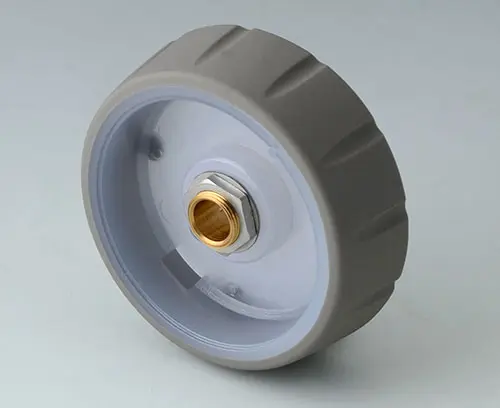

CONTROL-KNOBS 46, optional illumination
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Version With optional illumination – translucent optic ring on the top surface
Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)
B7146633
CONTROL-KNOBS 46, optional illuminationProdotto aggiunto alla lista
volcano
46x14,7mm
Foro assiale 1/4″
B7146634

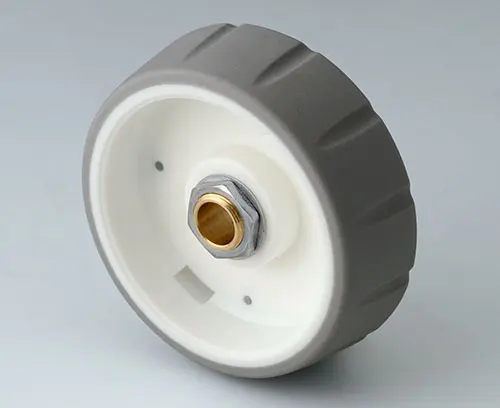

CONTROL-KNOBS 46
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Version Traffic white colour optic ring on the top surface
Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)
B7146634
CONTROL-KNOBS 46Prodotto aggiunto alla lista
volcano
46x14,7mm
Foro assiale 1/4″
B7246061
CONTROL-KNOBS 46, optional illumination
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Version With optional illumination – translucent optic ring on the top surface and pointer line on the side
Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)
B7246061
CONTROL-KNOBS 46, optional illuminationProdotto aggiunto alla lista
nero
46x14,7mm
Foro assiale 6mm
B7246062

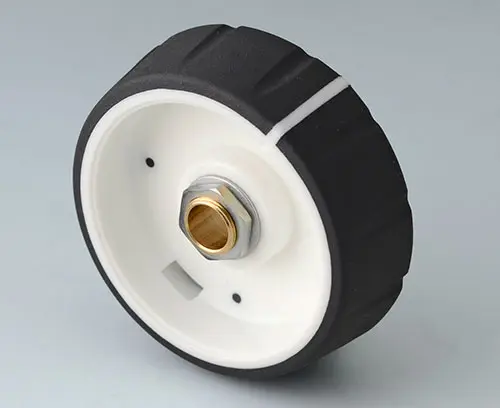

CONTROL-KNOBS 46
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Version Traffic white colour optic ring on the top surface with pointer line on the side
Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)
B7246062
CONTROL-KNOBS 46Prodotto aggiunto alla lista
nero
46x14,7mm
Foro assiale 6mm
B7246063

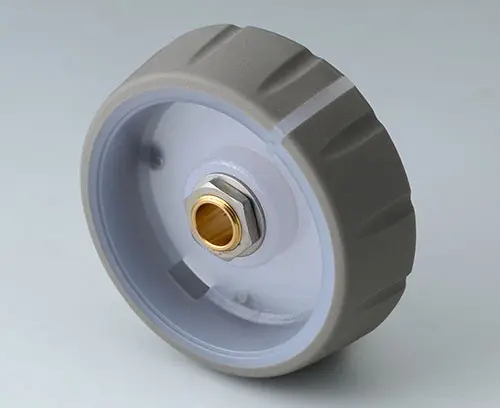

CONTROL-KNOBS 46, optional illumination
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Version With optional illumination – translucent optic ring on the top surface and pointer line on the side
Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)
B7246063
CONTROL-KNOBS 46, optional illuminationProdotto aggiunto alla lista
volcano
46x14,7mm
Foro assiale 6mm
B7246064
CONTROL-KNOBS 46
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Version Traffic white colour optic ring on the top surface with pointer line on the side
Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)
B7246064
CONTROL-KNOBS 46Prodotto aggiunto alla lista
volcano
46x14,7mm
Foro assiale 6mm
B7246631

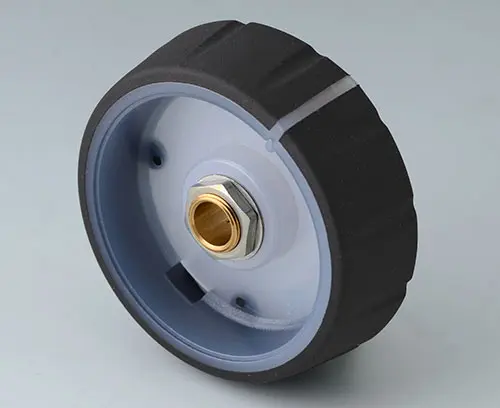

CONTROL-KNOBS 46, optional illumination
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Version With optional illumination – translucent optic ring on the top surface and pointer line on the side
Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)
B7246631
CONTROL-KNOBS 46, optional illuminationProdotto aggiunto alla lista
nero
46x14,7mm
Foro assiale 1/4″
B7246632
CONTROL-KNOBS 46
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Version Traffic white colour optic ring on the top surface with pointer line on the side
Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)
B7246632
CONTROL-KNOBS 46Prodotto aggiunto alla lista
nero
46x14,7mm
Foro assiale 1/4″
B7246633
CONTROL-KNOBS 46, optional illumination
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. For optional illumination, please also order the base and the LED lighting kit (accessories).
Version With optional illumination – translucent optic ring on the top surface and pointer line on the side
Supply 1 knob, (minimum components for 1 CONTROL-KNOB, with illumination: 1 knob, illuminated version, 1 cover, 1 base and 1 LED lighting kit)
B7246633
CONTROL-KNOBS 46, optional illuminationProdotto aggiunto alla lista
volcano
46x14,7mm
Foro assiale 1/4″
B7246634
CONTROL-KNOBS 46
Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Version Traffic white colour optic ring on the top surface with pointer line on the side
Supply 1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)
B7246634
CONTROL-KNOBS 46Prodotto aggiunto alla lista
volcano
46x14,7mm
Foro assiale 1/4″
Accessory
B7546002

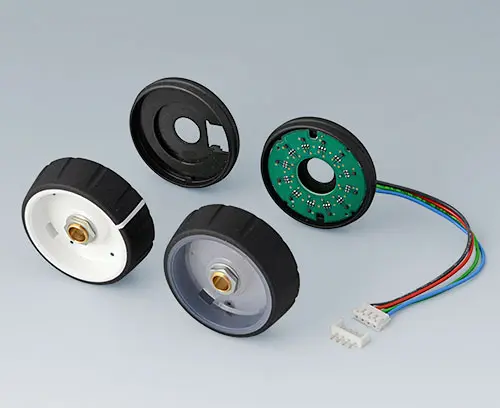

LED illumination kit, 12 LEDs (RGB backlight)
Board D=37 mm with 12 LEDs (RGB backlight), without controller, SMD technology, connecting cable 120 mm long, 4-pin socket at the end, incl. connector.
Recommended for:CONTROL-KNOBS 46 with optional illumination
- installation in the bases available as accessories
Supply 1 LED illumination kit (RGB backlight)
B7546002
LED illumination kit, 12 LEDs (RGB backlight)Prodotto aggiunto alla lista
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 328 KB
- AutoCAD DWG-File 602 KB
- AutoCAD DXF-File 2.308 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 60 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00027142.x_t 282 KB
- 00027142.step 784 KB
- 00027142.sat 573 KB
Weight/1 part
4 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
