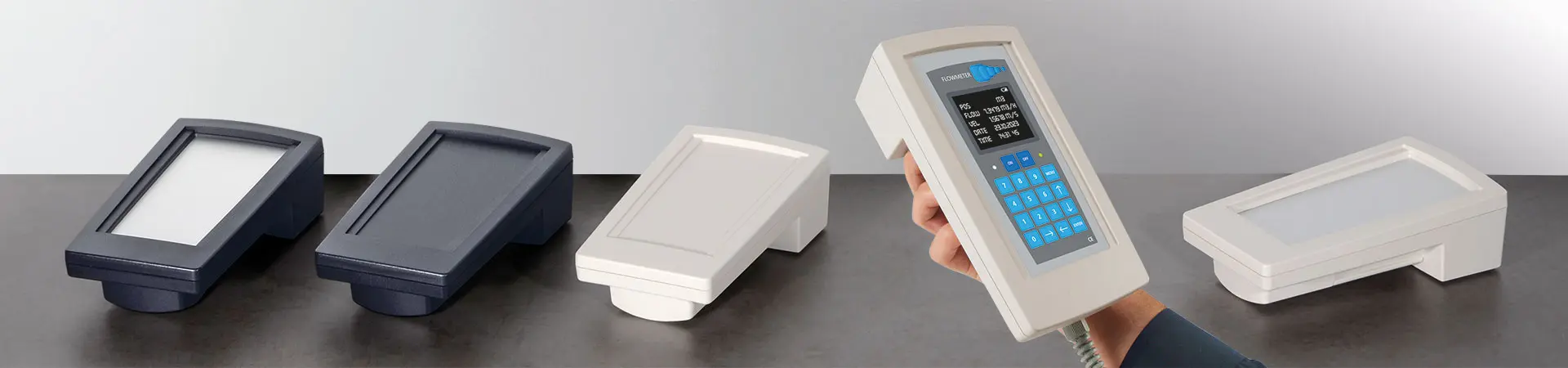

Hand-Terminal

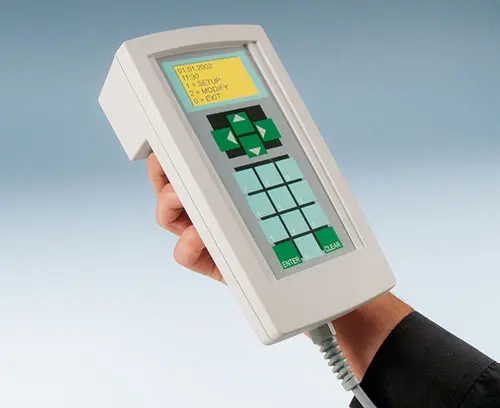

Contenitori per applicazioni di controllo mobili per macchine, impianti e outdoor
I contenitori HAND-TERMINAL per applicazioni mobili sono predestinati per i componenti elettronici che richiedono un contenitore resistente.
- Materiale ignifugo, resistente agli urti

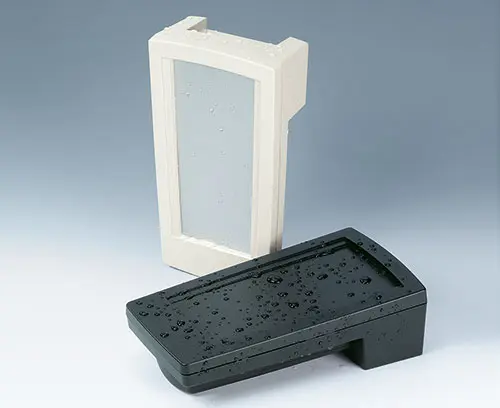

- Resistente e a tenuta fino al grado di protezione IP 65, guarnizione come accessorio

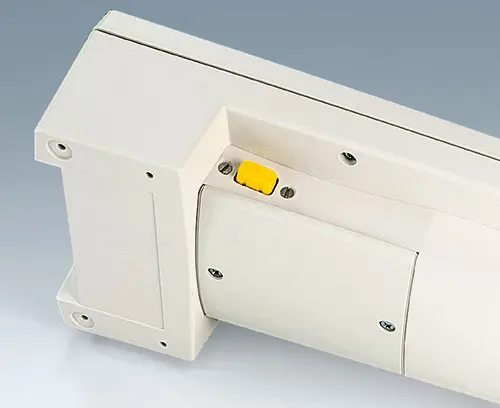

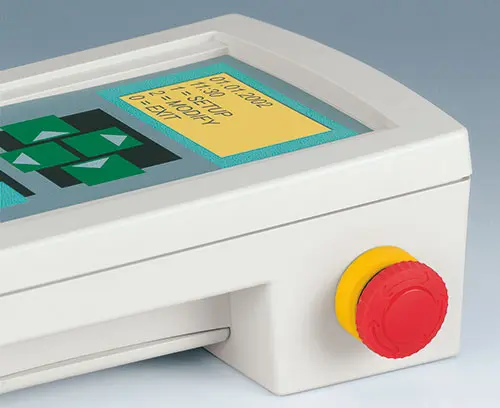

- Molto spazio per elementi di comando, display, componenti elettronici, interruttori di arresto di emergenza e pulsanti di accettazione

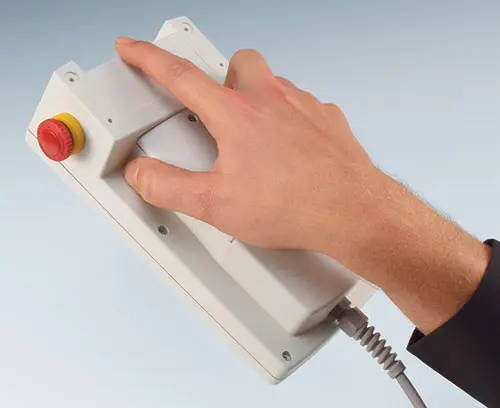

- Area dell'impugnatura ergonomica per una presa agevole

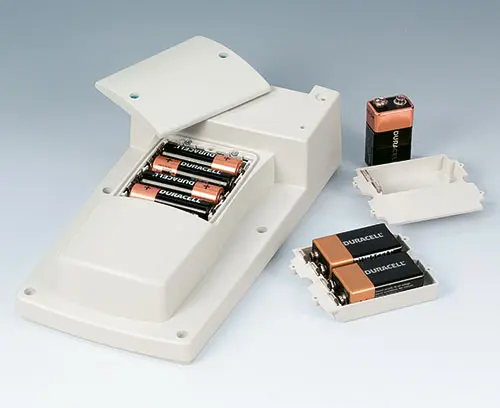

- Per comandi sul cavo o con vano batteria 4 batterie AA, 1 da 9 V o 2 da 9 V
- Distribuzione ottimale del peso
- Superficie di comando incavata a protezione della tastiera a membrana

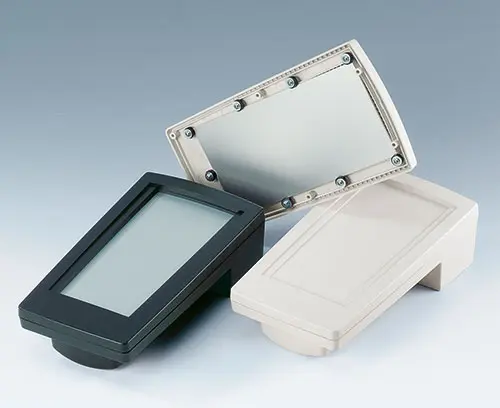

- Versione I con parte superiore chiusa

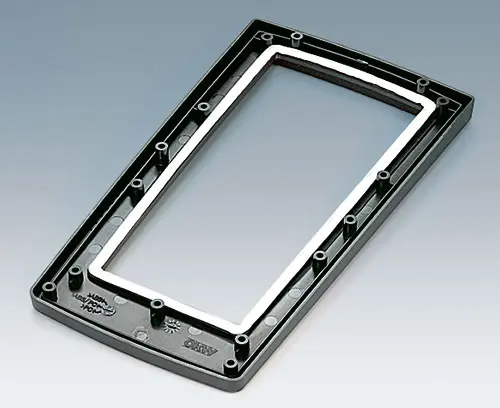

- Versione II per montaggio su placca frontale
- Punti di fissaggio per schede e componenti di montaggio
Application Fields

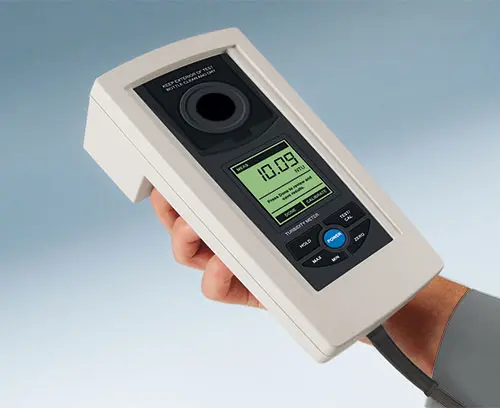

Comandi flessibili delle macchine nella produzione e nel montaggio. Terminali per applicazioni teach-in. Applicazioni tradizionali di elettrotecnica ed elettronica, come ad esempio nella metrologia e nella tecnica di regolazione ecc.
A9046107
Version With closed operation area
Supply top and bottom part, battery compartment lid, assembly kit incl. PCB-screws and rubber feet
A9046107
HAND-TERMINAL M, Vers. Ioff-white RAL 9002
220x120x65mm
A9046109
Version With closed operation area
Supply Top and bottom part, battery compartment lid, assembly kit incl. PCB-screws and rubber feet
A9046109
HAND-TERMINAL M, Vers. Iblack RAL 9005
220x120x65mm
A9046207
Version With frame cover for the use of an aluminium-front panel (accessories)
Supply Frame cover, bottom part, battery compartment lid, assembly kit incl. screws for the front panel as well as for the PCB and rubber feet
A9046207
HAND-TERMINAL M, Vers. IIoff-white RAL 9002
220x120x65mm
A9046209
Version With frame cover for the use of an aluminium-front panel (accessories)
Supply Frame cover, bottom part, battery compartment lid, assembly kit incl. screws for the front panel as well as for the PCB and rubber feet
A9046209
HAND-TERMINAL M, Vers. IIblack RAL 9005
220x120x65mm
A0306031
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
A0308031
Supply 1 self-tapping screw
A0308031
Self-tapping screws 3 x 8 mm (PZ1)
A0308132
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)
A9146101
Supply 1 front panel (srews supplied with the case)
A9146101
Front panel Mmatt anodised
179x88x2mm
A9146106

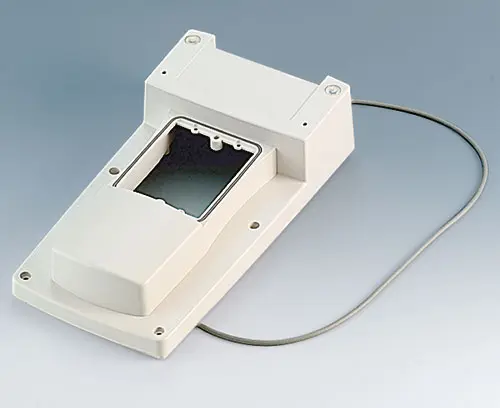

Supply 1 sealing kit
A9146106
Sealing kit M
A9146206
Supply 1 sealing
A9146206
Sealing M
A9160003
Application: for a 9 V flat battery (PP3).
Supply 1 plug-in contact
A9160003
Plug-in contact, 1 x 9 V (PP3)
A9161002
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.
Supply 4 single contacts
A9161002
Set of battery clips, 2 x 9 V or 4 x AAtin-plated
A9174002
Supply 1 battery compartment, assembly kit
A9174002
Battery compartment, 2 x 9 Voff-white RAL 9002
A9174003
Supply 1 battery compartment, assembly kit
A9174003
Battery compartment, 1 x 9 Voff-white RAL 9002
A9174006
Supply 2 single contacts
A9174006
Set of battery clips, 1 x 9 Vtin-plated
A9250250
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.
Supply 1 spacer
A9250250
Battery spacer50x25x4mm
A9345217
Supply 1 battery compartment, battery clips nickel-plated, assembly kit
A9345217
Set of battery compartment, 4 x AAoff-white RAL 9002
Opzioni prodotto per Hand-Terminal
Che caratteristiche deve avere il vostro prodotto personalizzato? Su richiesta vi forniamo i contenitori e manopole pronti per il montaggio e con tutte le modifiche e le caratteristiche specifiche.
