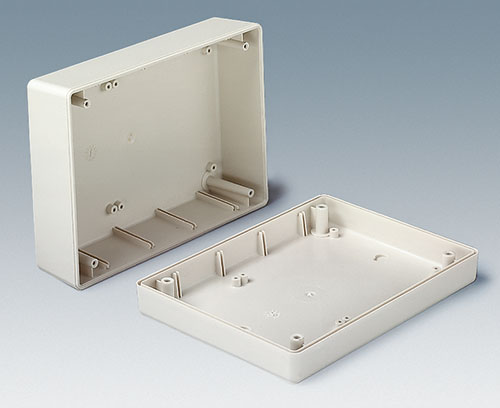

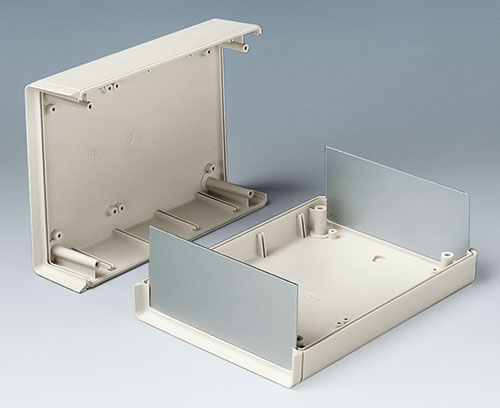

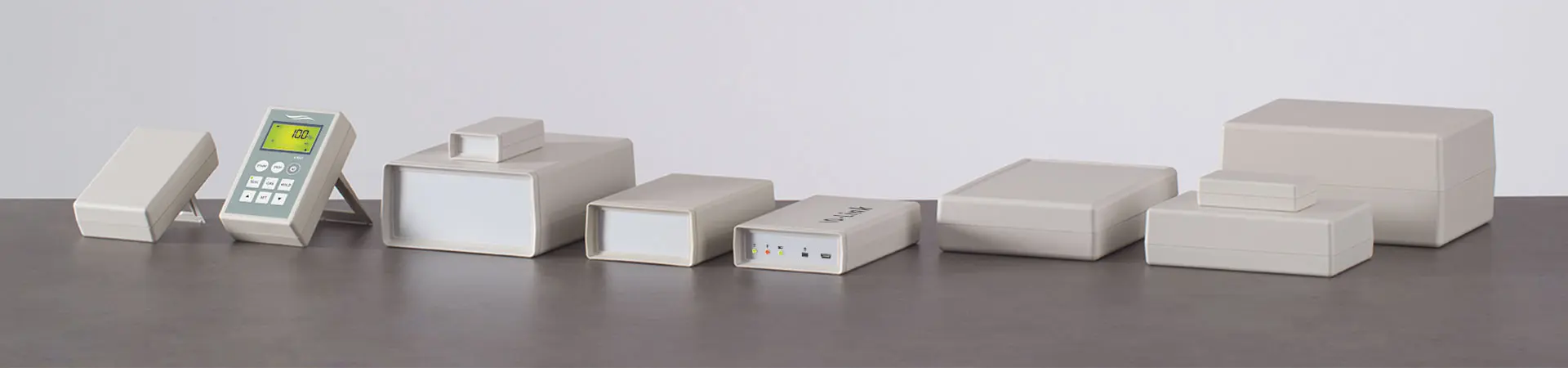

Contenitori a guscio

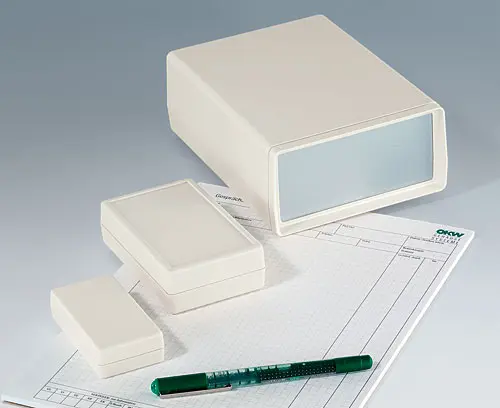

Contenitore universale per strumentazione

Il programma di contenitori a guscio è disponibile in dimensioni, altezze e tipi diversi. Scegliete il contenitore che risponde perfettamente alle vostre esigenze specifiche!

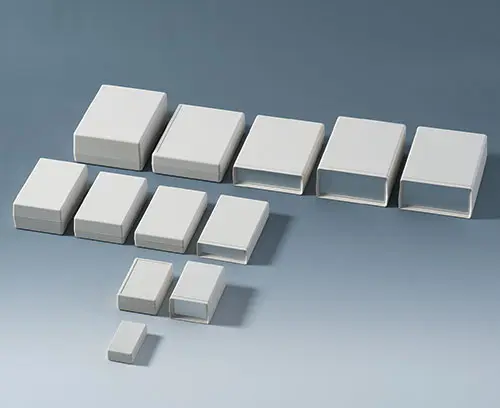

  • 51 contenitori in 3 tipi diversi:

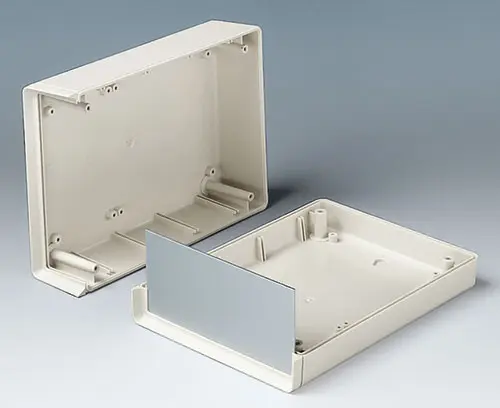

    Tipo V – lato frontale aperto, lato posteriore chiuso
    Tipo O – lato frontale aperto, lato posteriore aperto

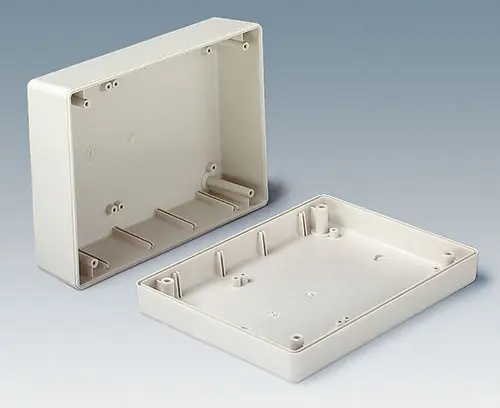

    Tipo G – lato frontale chiuso, lato posteriore chiuso
  • Elevata stabilità grazie alle giunzioni maschio e femmina su tutto il perimetro
  • Listelli di guida per il montaggio verticale di pareti di separazione e circuiti stampati
  • Punti di fissaggio in parte superiore e inferiore

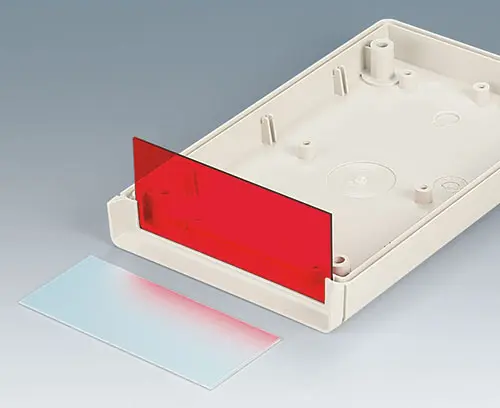

  • Placca frontale e posteriore in alluminio o PMMA rosso (acrylic glass) come accessori

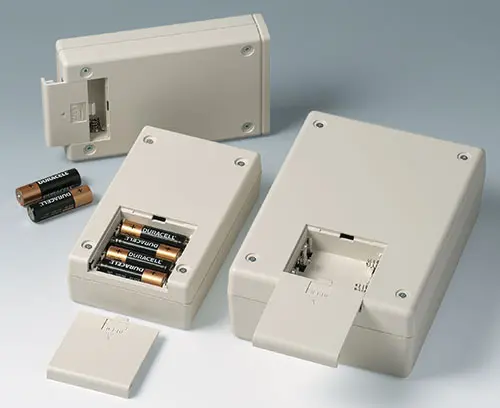

  • Versioni con vano batteria per 4 x AA, 2 x AA, 1 x 9 V o 2 x 9 V (tipi V e G)

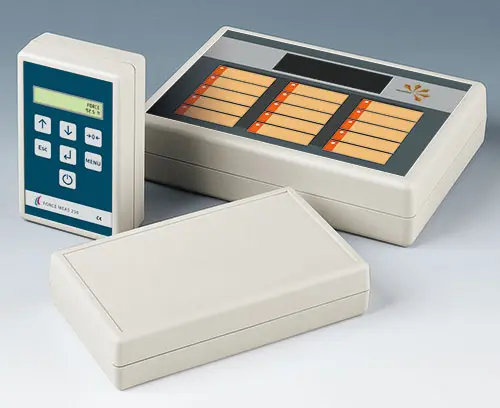

  • Versione chiusa (tipo G) anche con superficie di comando incavata per proteggere la tastiera a membrana

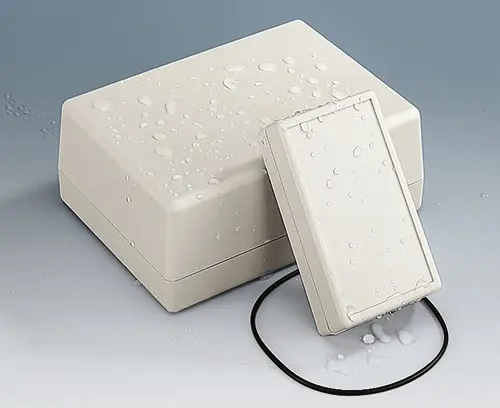

  • Grado di protezione fino a IP 65 in versione chiusa (tipo G) senza vano batteria se si usa il set di guarnizioni (accessori)

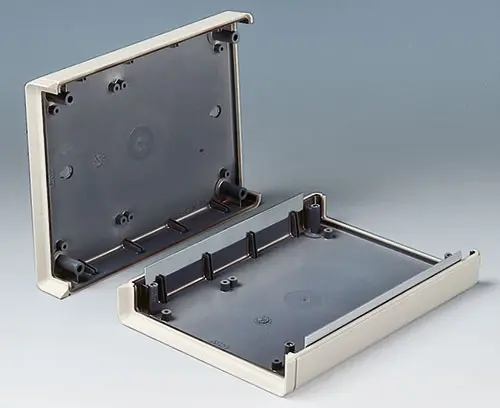

  • EMV: i gusci del contenitore possono essere forniti su richiesta anche con alluminio vaporizzato; la realizzazione del contatto può essere migliorata tramite le apposite strisce offerte (accessori)
  • Linguette per fissaggio a parete / set supporto da parete come accessori

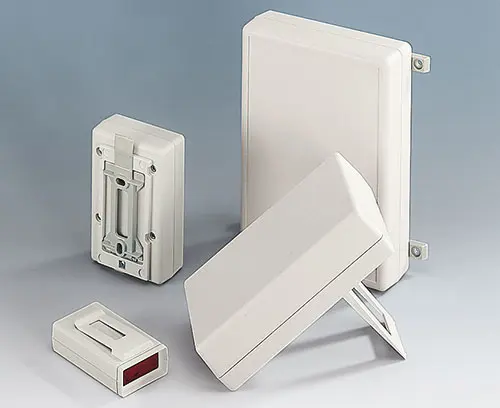

  • Funzioni addizionali con accessori universali
Crea PDF

Application Fields

Metrologia e tecnica di regolazione, realizzazione di unità di controllo, tecnica medicale e di laboratorio, periferiche e dispositivi interfaccia, scatole switch e modem, ecc.

Scegliete la versione e la misura o le misure desiderate oppure cliccate sul pulsante “Seleziona tutti i prodotti” alla fine della lista dei prodotti.

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Prodotto aggiunto alla lista

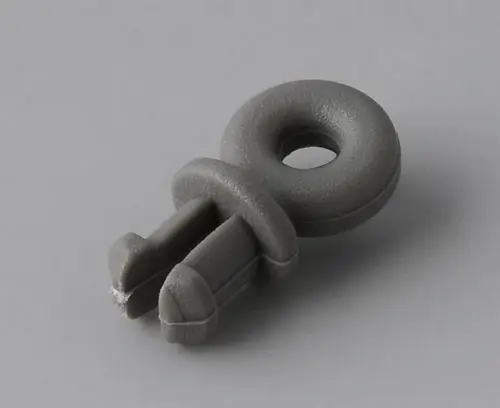

A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

A9100001

Ring eyelet
Prodotto aggiunto alla lista

volcano
A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

A9100002

Ring eyelet
Prodotto aggiunto alla lista

volcano

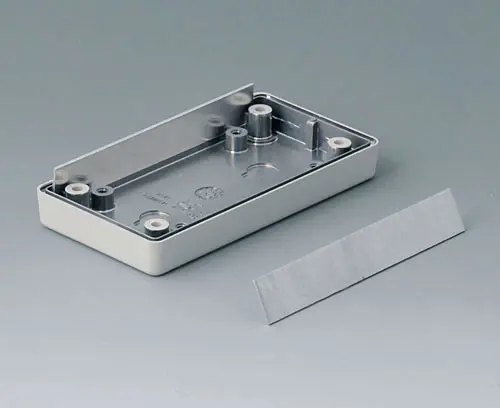

A9104073 Contact-strips V, G 85

A9104073

Contact-strips V, G 85 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

A9104073

Contact-strips V, G 85
Prodotto aggiunto alla lista

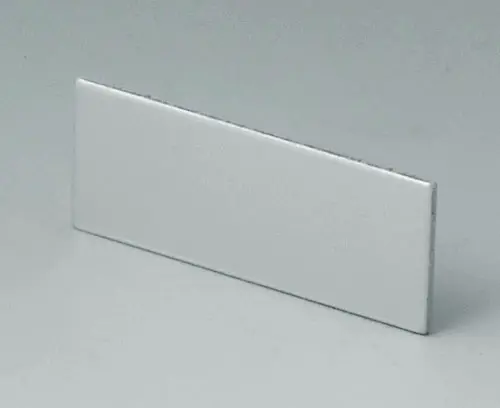

A9104111 Front / rear panel V 85

A9104111

Front / rear panel V 85 Front panel for SHELL-TYPE CASE V and O. For case A940433.

Supply 1 front panel

A9104111

Front / rear panel V 85
Prodotto aggiunto alla lista

matt anodised
36x14,6x1mm

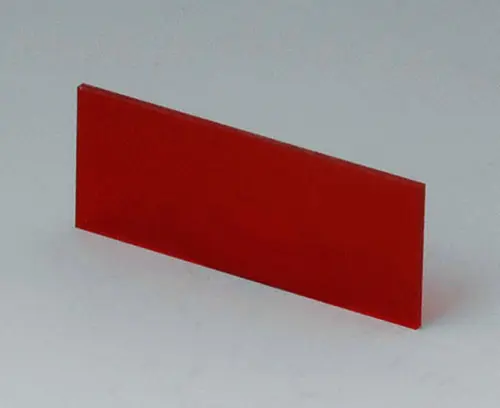

A9104113 Front / rear panel V 85

A9104113

Front / rear panel V 85 Front panel for SHELL-TYPE CASE V and O. For case A940433.

Supply 1 front panel

A9104113

Front / rear panel V 85
Prodotto aggiunto alla lista

red transparent
36x14,6x1mm

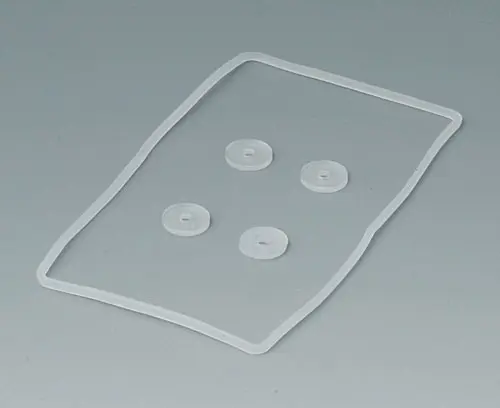

A9104250 Sealing kit G 85

A9104250

Sealing kit G 85 Inlay O-ring and four rubber disks seal the tongue and groove joint and the four assembly kits.

Supply 1 O-ring, 4 rubber disks

A9104250

Sealing kit G 85
Prodotto aggiunto alla lista

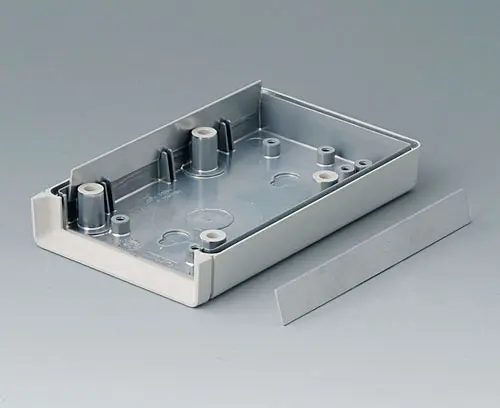

A9106095 Contact-strips V, G 110

A9106095

Contact-strips V, G 110 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

A9106095

Contact-strips V, G 110
Prodotto aggiunto alla lista

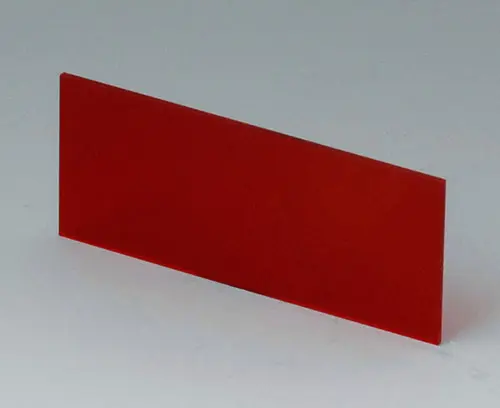

A9106113 Front / rear panel V 110

A9106113

Front / rear panel V 110 Front panel for SHELL-TYPE CASE V and O. For case A940633.

Supply 1 front panel

A9106113

Front / rear panel V 110
Prodotto aggiunto alla lista

red transparent
59,3x25x1mm

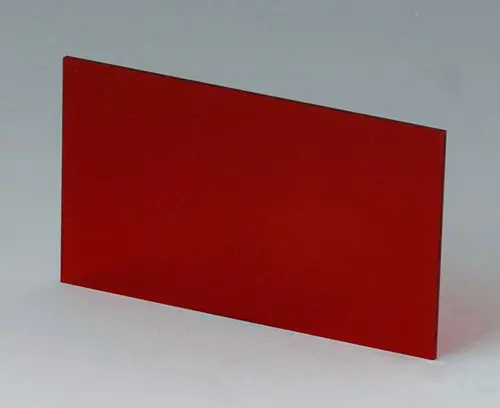

A9106123 Front / rear panel V 110

A9106123

Front / rear panel V 110 Front panel for SHELL-TYPE CASE V and O. For case A940634.

Supply 1 front panel

A9106123

Front / rear panel V 110
Prodotto aggiunto alla lista

red transparent
59,3x37x1mm

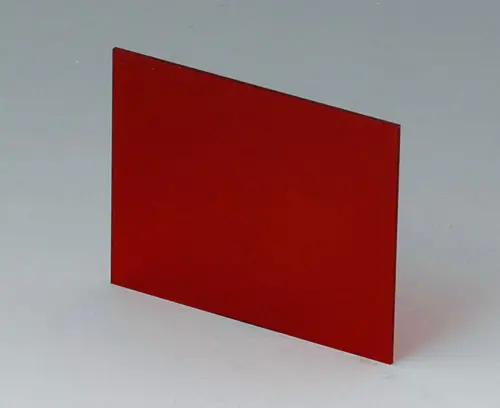

A9106223 Front / rear panel V 110

A9106223

Front / rear panel V 110 Front panel for SHELL-TYPE CASE V and O. For case A940644.

Supply 1 front panel

A9106223

Front / rear panel V 110
Prodotto aggiunto alla lista

red transparent
59,3x49x1mm

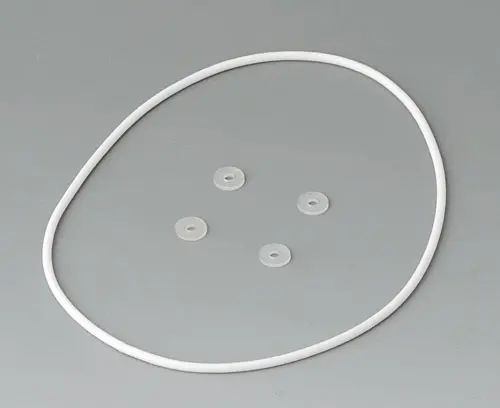

A9106352 Sealing kit G 110

A9106352

Sealing kit G 110 Inlay O-ring and four rubber disks seal the tongue and groove joint and the four assembly kits.

Supply 1 O-ring, 4 rubber disks

A9106352

Sealing kit G 110
Prodotto aggiunto alla lista

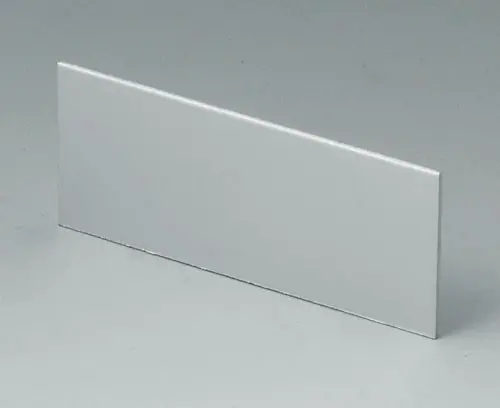

A9107111 Front / rear panel V 110

A9107111

Front / rear panel V 110 Front panel for SHELL-TYPE CASE V and O. For case A940633.

Supply 1 front panel

A9107111

Front / rear panel V 110
Prodotto aggiunto alla lista

matt anodised
59,3x25x1mm

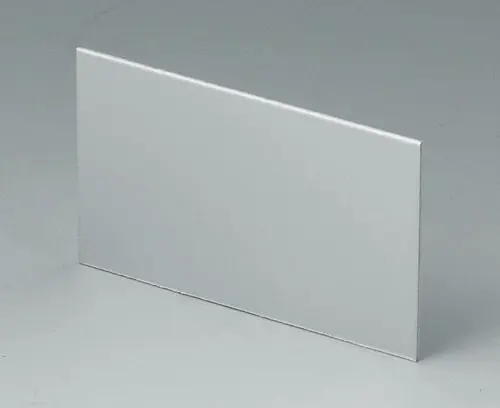

A9107121 Front / rear panel V 110

A9107121

Front / rear panel V 110 Front panel for SHELL-TYPE CASE V and O. For case A940634.

Supply 1 front panel

A9107121

Front / rear panel V 110
Prodotto aggiunto alla lista

matt anodised
59,3x37x1mm
A9107221 Front / rear panel V 110

A9107221

Front / rear panel V 110 Front panel for SHELL-TYPE CASE V and O. For case A940644.

Supply 1 front panel

A9107221

Front / rear panel V 110
Prodotto aggiunto alla lista

matt anodised
59,3x49x1mm

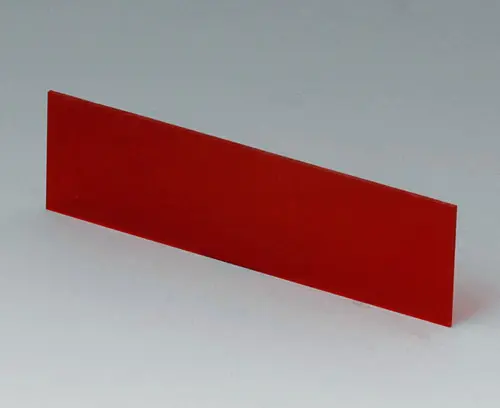

A9108113 Front / rear panel V, O 155

A9108113

Front / rear panel V, O 155 Front panel for SHELL-TYPE CASE V and O. For case A940833.

Supply 1 front panel

A9108113

Front / rear panel V, O 155
Prodotto aggiunto alla lista

red transparent
81,9x23,6x1mm

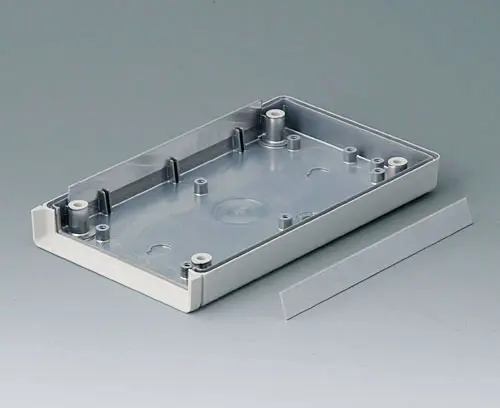

A9108120 Contact-strips V, O, G 155

A9108120

Contact-strips V, O, G 155 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

A9108120

Contact-strips V, O, G 155
Prodotto aggiunto alla lista
A9108123 Front / rear panel V, O 155

A9108123

Front / rear panel V, O 155 Front panel for SHELL-TYPE CASE V and O. For case A940834.

Supply 1 front panel

A9108123

Front / rear panel V, O 155
Prodotto aggiunto alla lista

red transparent
81,9x35,6x1mm

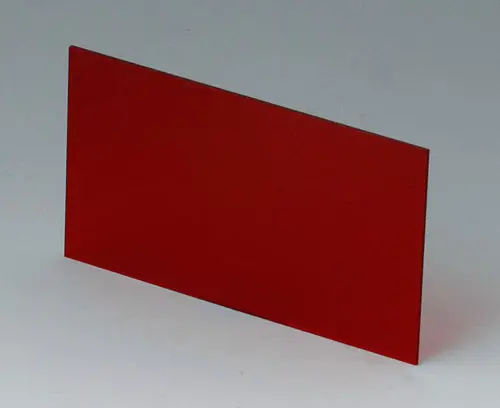

A9108223 Front / rear panel V, O 155

A9108223

Front / rear panel V, O 155 Front panel for SHELL-TYPE CASE V and O. For case A940844.

Supply 1 front panel

A9108223

Front / rear panel V, O 155
Prodotto aggiunto alla lista

red transparent
81,9x47,6x1mm

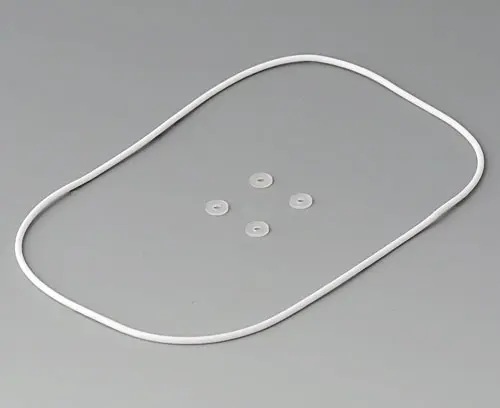

A9108486 Sealing kit G 155

A9108486

Sealing kit G 155 Inlay O-ring and four rubber disks seal the tongue and groove joint and the four assembly kits.

Supply 1 O-ring, 4 rubber disks

A9108486

Sealing kit G 155
Prodotto aggiunto alla lista

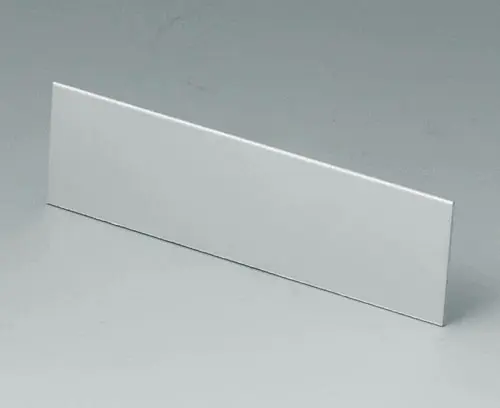

A9109111 Front / rear panel V, O 155

A9109111

Front / rear panel V, O 155 Front panel for SHELL-TYPE CASE V and O. For case A940833.

Supply 1 front panel

A9109111

Front / rear panel V, O 155
Prodotto aggiunto alla lista

matt anodised
81,9x23,6x1mm

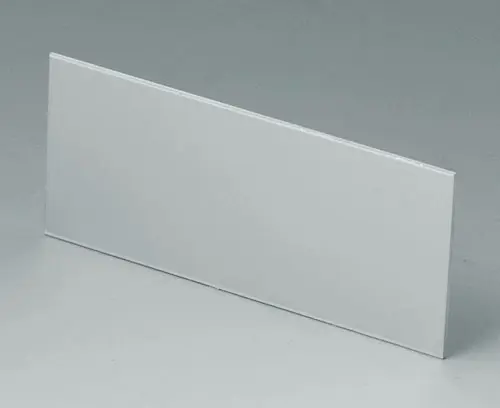

A9109121 Front / rear panel V, O 155

A9109121

Front / rear panel V, O 155 Front panel for SHELL-TYPE CASE V and O. For case A940834.

Supply 1 front panel

A9109121

Front / rear panel V, O 155
Prodotto aggiunto alla lista

matt anodised
81,9x35,6x1mm

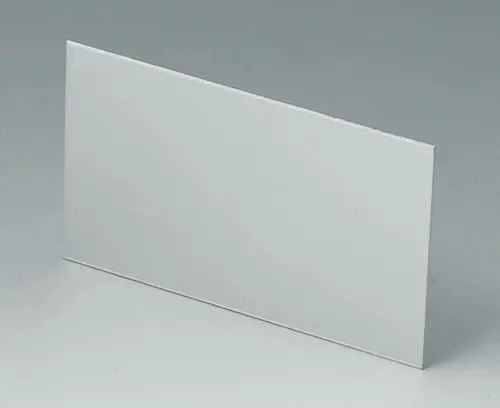

A9109221 Front / rear panel V, O 155

A9109221

Front / rear panel V, O 155 Front panel for SHELL-TYPE CASE V and O. For case A940844.

Supply 1 front panel

A9109221

Front / rear panel V, O 155
Prodotto aggiunto alla lista

matt anodised
81,9x47,6x1mm

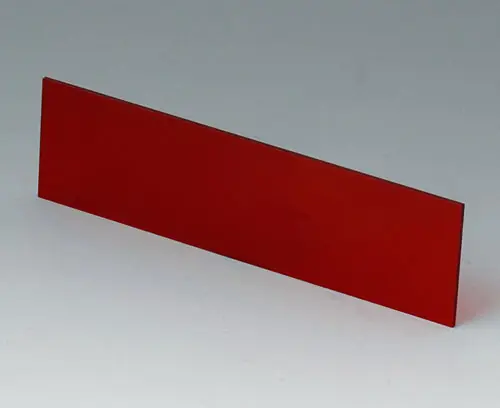

A9113113 Front / rear panel V, O 190

A9113113

Front / rear panel V, O 190 Front panel for SHELL-TYPE CASE V and O. For case A941333.

Supply 1 front panel

A9113113

Front / rear panel V, O 190
Prodotto aggiunto alla lista

red transparent
124,2x33,6x1,5mm

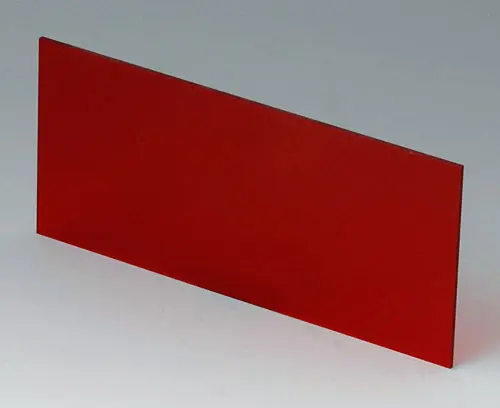

A9113123 Front / rear panel V, O 190

A9113123

Front / rear panel V, O 190 Front panel for SHELL-TYPE CASE V and O. For case A941334.

Supply 1 front panel

A9113123

Front / rear panel V, O 190
Prodotto aggiunto alla lista

red transparent
124,2x56,6x1,5mm

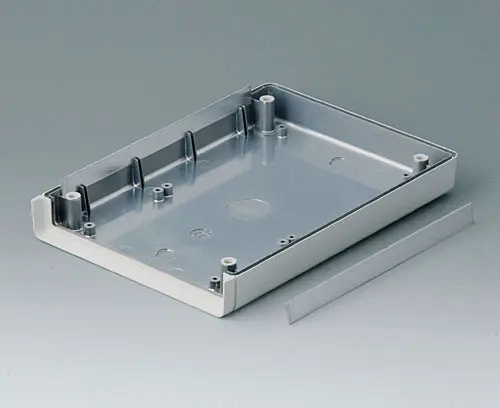

A9113150 Contact-strips V, O, G 190

A9113150

Contact-strips V, O, G 190 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

A9113150

Contact-strips V, O, G 190
Prodotto aggiunto alla lista
A9113223 Front / rear panel V, O 190

A9113223

Front / rear panel V, O 190 Front panel for SHELL-TYPE CASE V and O. For case A941344.

Supply 1 front panel

A9113223

Front / rear panel V, O 190
Prodotto aggiunto alla lista

red transparent
124,2x79,6x1,5mm

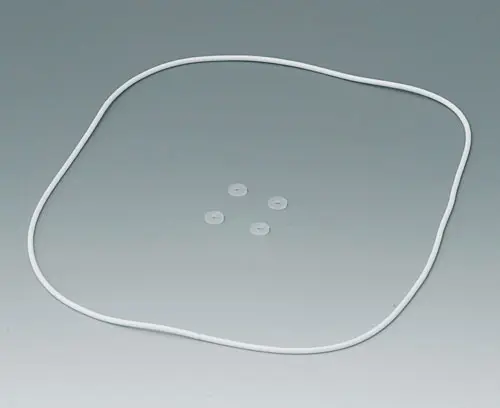

A9113630 Sealing kit G 190

A9113630

Sealing kit G 190 Inlay O-ring and four rubber disks seal the tongue and groove joint and the four assembly kits.

Supply 1 O-ring, 4 rubber disks

A9113630

Sealing kit G 190
Prodotto aggiunto alla lista

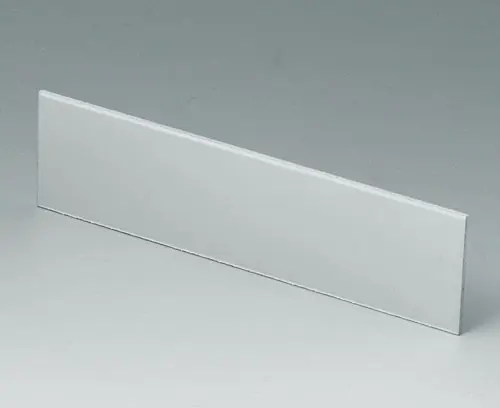

A9114111 Front / rear panel V, O 190

A9114111

Front / rear panel V, O 190 Front panel for SHELL-TYPE CASE V and O. For case A941333.

Supply 1 front panel

A9114111

Front / rear panel V, O 190
Prodotto aggiunto alla lista

matt anodised
124,2x33,6x1,5mm

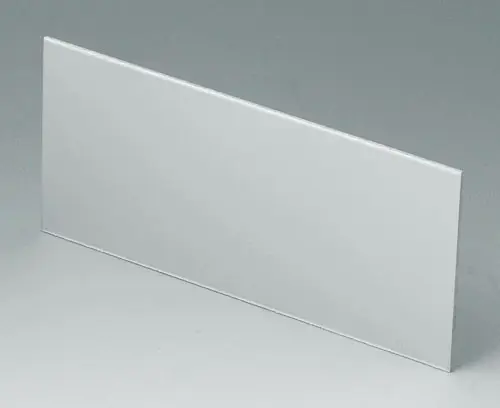

A9114121 Front / rear panel V, O 190

A9114121

Front / rear panel V, O 190 Front panel for SHELL-TYPE CASE V and O. For case A941334.

Supply 1 front panel

A9114121

Front / rear panel V, O 190
Prodotto aggiunto alla lista

matt anodised
124,2x56,6x1,5mm

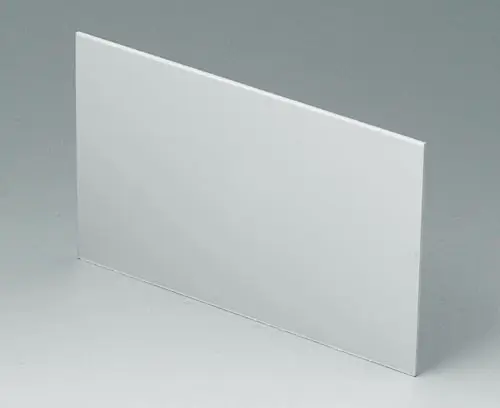

A9114221 Front / rear panel V, O 190

A9114221

Front / rear panel V, O 190 Front panel for SHELL-TYPE CASE V and O. For case A941344.

Supply 1 front panel

A9114221

Front / rear panel V, O 190
Prodotto aggiunto alla lista

matt anodised
124,2x79,6x1,5mm
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

A9160003

Plug-in contact, 1 x 9 V (PP3)
Prodotto aggiunto alla lista

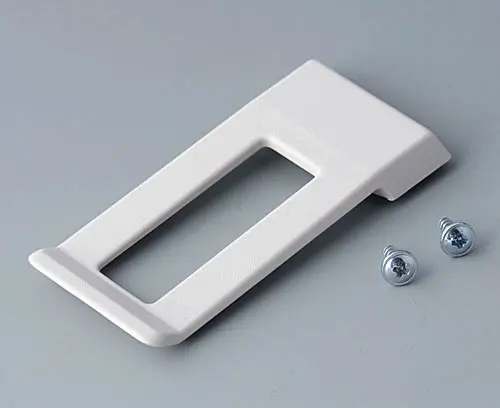

A9172107 Belt/Pocket clip

A9172107

Belt/Pocket clip Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply 1 belt/pocket clip, assembly kit

A9172107

Belt/Pocket clip
Prodotto aggiunto alla lista

off-white RAL 9002
62x30mm

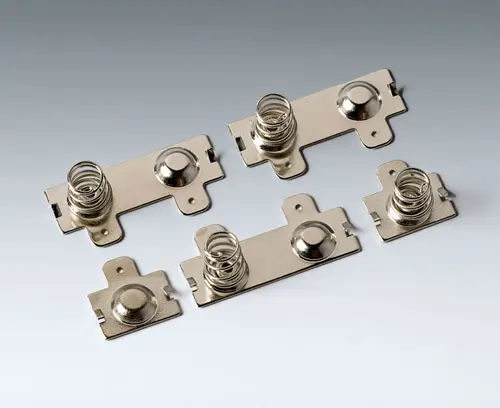

A9190013 Set of battery clips, 4 x AA

A9190013

Set of battery clips, 4 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 2 double contact left, 1 single contact positive, 1 single contact negative

A9190013

Set of battery clips, 4 x AA
Prodotto aggiunto alla lista

nickel-plated

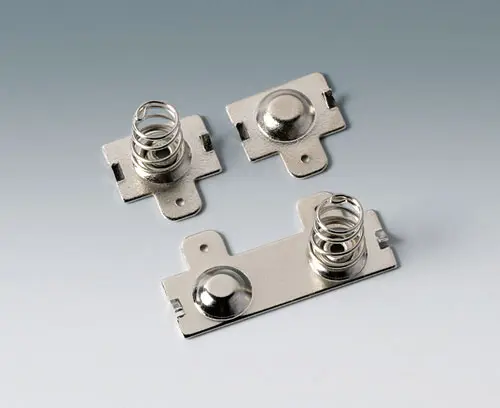

A9190014 Set of battery clips, 2 x AA

A9190014

Set of battery clips, 2 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contact left, 1 single contact positive, 1 single contact negative

A9190014

Set of battery clips, 2 x AA
Prodotto aggiunto alla lista

nickel-plated

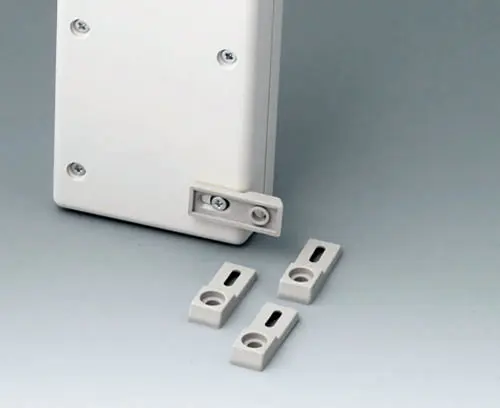

A9204108 Wall mounting brackets

A9204108

Wall mounting brackets Exterior wall mounting elements for the SHELL-TYPE CASES 110, 155 and 190. Fastening to the case by means of the case fixing screws.

Supply 4 wall mounting brackets

A9204108

Wall mounting brackets
Prodotto aggiunto alla lista

pebble grey RAL 7032

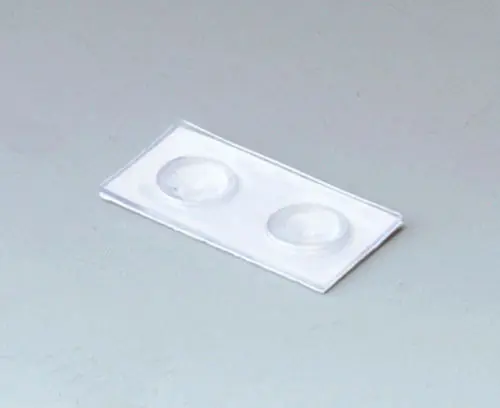

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9207150

Anti-slide feet 6.5 x 2 mm
Prodotto aggiunto alla lista
transparent

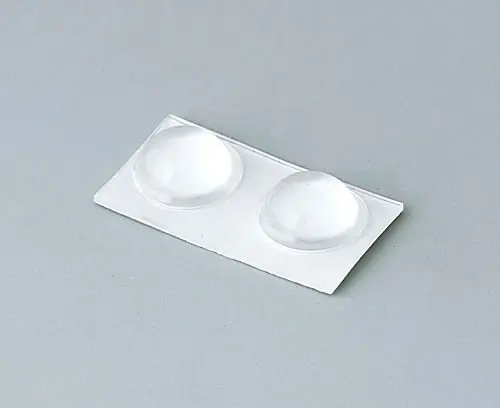

A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9210290

Anti-slide feet 9.5 x 3.8 mm
Prodotto aggiunto alla lista
transparent

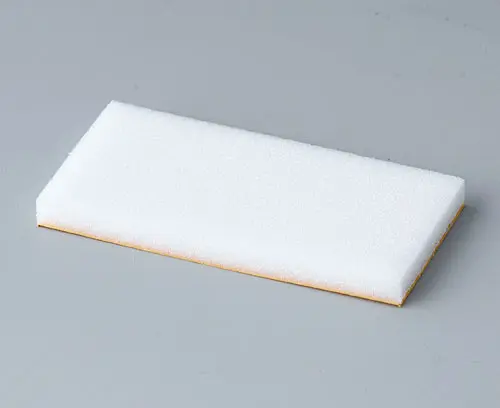

A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

A9250250

Battery spacer
Prodotto aggiunto alla lista

50x25x4mm

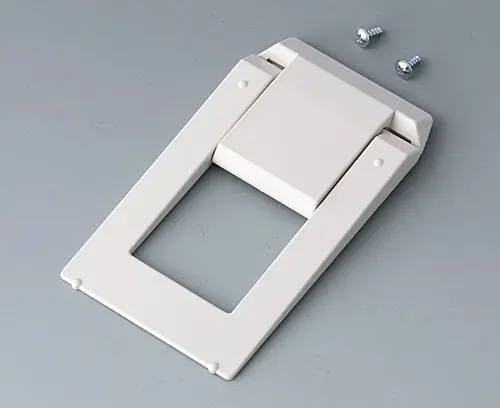

A9250807 Tilt foot bar

A9250807

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

A9250807

Tilt foot bar
Prodotto aggiunto alla lista

off-white RAL 9002

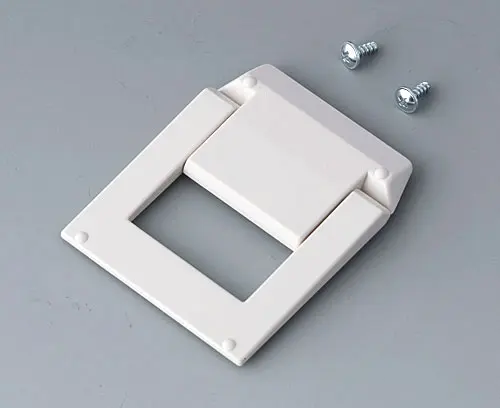

A9250817 Tilt foot bar

A9250817

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

A9250817

Tilt foot bar
Prodotto aggiunto alla lista

off-white RAL 9002
A9325018 Pole/mast mounting bracket

A9325018

Pole/mast mounting bracket

For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.

Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.

Supply 1 pole/mast mounting bracket

A9325018

Pole/mast mounting bracket
Prodotto aggiunto alla lista

anthracite grey RAL 7016
100x100x20mm
B1350048 Wall suspension elements

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

B1350048

Wall suspension elements
Prodotto aggiunto alla lista

pebble grey RAL 7032
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

B1360048

Wall suspension elements
Prodotto aggiunto alla lista

pebble grey RAL 7032

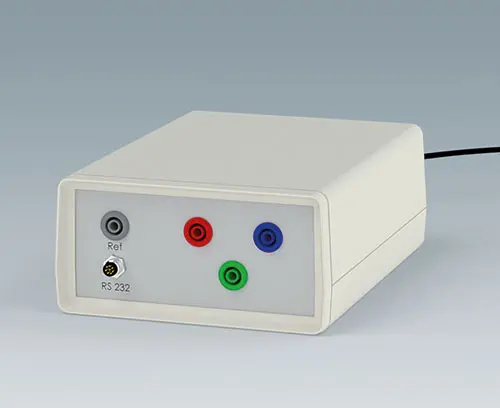

Opzioni prodotto per Contenitori a guscio

Che caratteristiche deve avere il vostro prodotto personalizzato? Su richiesta vi forniamo i contenitori e manopole pronti per il montaggio e con tutte le modifiche e le caratteristiche specifiche.
