Accessori per contenitori
B6134533
Protection cover
Protection cover for DIN-MODULAR CASE 96 x 96.
Supply1 protection cover
Disegno PDF 2D
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B6134533
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello

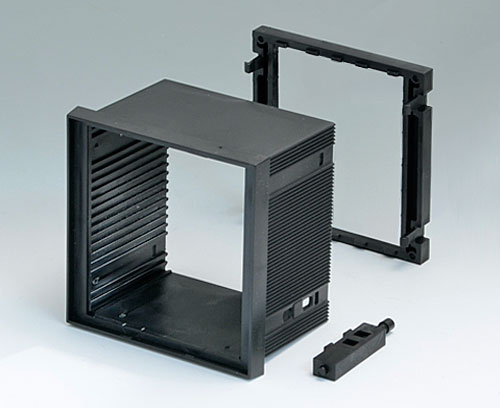

B6034011
DIN-MODULAR CASE TYPE A, Vers. I
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.
Version With guide ridges for slide-in PCB mounting on 2 sides
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6034011
DIN-MODULAR CASE TYPE A, Vers. IProdotto aggiunto alla lista
black RAL 9005
96x96x57mm

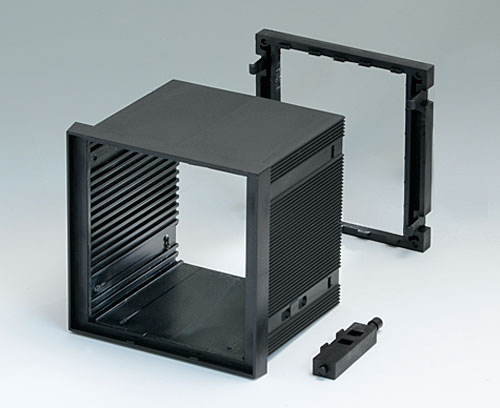

B6034021
DIN-MODULAR CASE TYPE A, Vers. I
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.
Version With guide ridges for slide-in PCB mounting on 2 sides
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6034021
DIN-MODULAR CASE TYPE A, Vers. IProdotto aggiunto alla lista
black RAL 9005
96x96x75mm

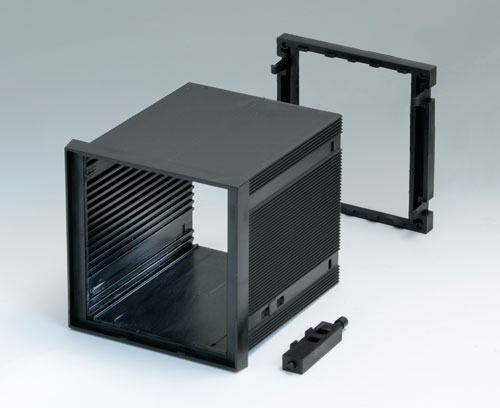

B6034031
DIN-MODULAR CASE TYPE A, Vers. I
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.
Version With guide ridges for slide-in PCB mounting on 2 sides
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6034031
DIN-MODULAR CASE TYPE A, Vers. IProdotto aggiunto alla lista
black RAL 9005
96x96x100mm
B6034062
DIN-MODULAR CASE TYPE A, Vers. II
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.
Version With guide ridges for slide-in PCB mounting on 4 sides
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6034062
DIN-MODULAR CASE TYPE A, Vers. IIProdotto aggiunto alla lista
black RAL 9005
96x96x124mm
B6034102
DIN-MODULAR CASE TYPE A, Vers. II
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.
Version With guide ridges for slide-in PCB mounting on 4 sides
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6034102
DIN-MODULAR CASE TYPE A, Vers. IIProdotto aggiunto alla lista
black RAL 9005
96x96x179mm
Customising options for B6134533
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 163 KB
- AutoCAD DWG-File 307 KB
- AutoCAD DXF-File 931 KB
Weight/1 part
25 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Italia
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B6134533 e non dimenticare di chiedere la quotazione!
