Accessori per contenitori
B6123221
Front panel
Front panel for DIN-MODULAR CASE 72 x 72.
Supply1 front panel
Create la vostra scheda dati PDF per B6123221
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
B6023011
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6023011
DIN-MODULAR CASE TYPE AProdotto aggiunto alla lista
black RAL 9005
72x72x57mm

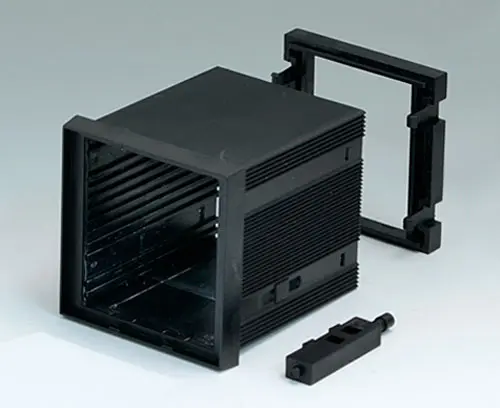

B6023021
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6023021
DIN-MODULAR CASE TYPE AProdotto aggiunto alla lista
black RAL 9005
72x72x75mm

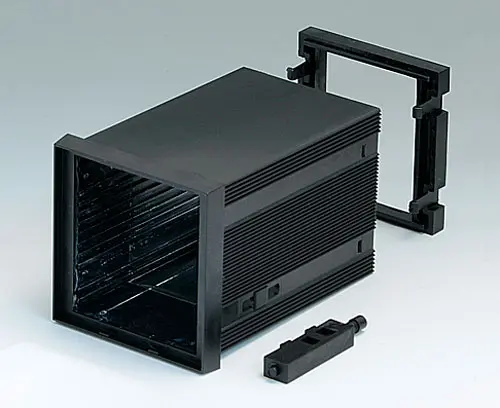

B6023031
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6023031
DIN-MODULAR CASE TYPE AProdotto aggiunto alla lista
black RAL 9005
72x72x100mm

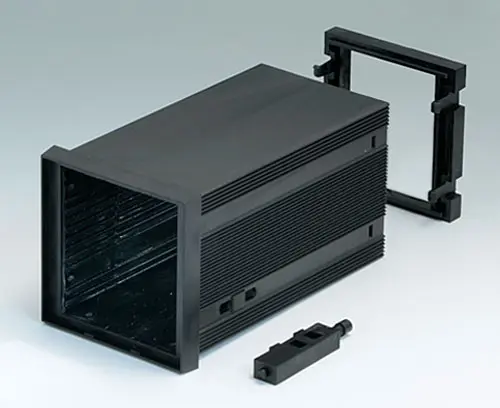

B6023061
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6023061
DIN-MODULAR CASE TYPE AProdotto aggiunto alla lista
black RAL 9005
72x72x124mm
Customising options for B6123221
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Larghezza
67,6 mm
Altezza
67,6 mm
Spessore
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
11 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Italia
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B6123221 e non dimenticare di chiedere la quotazione!
