A9022465

PLUG CASE D, Vers. II

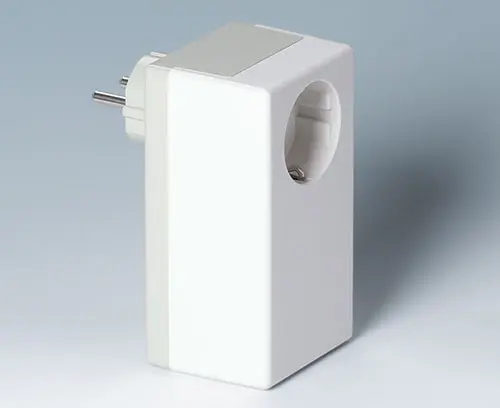

Two-part plug case, German version. Fixing towers for the PCB assembly.

Version

With integrated socket DIN 49440 and plug section DIN 49441 R2

Supply

1 top part with integrated socket and 1 bottom part with plug section, assembly kit including 4 screws for the PCB fixing

Disegno PDF 2D
3D/2D download

Create la vostra scheda dati PDF per A9022465

Selezionate le informazioni prodotto per la vostra scheda dati.

Aggiungi al carrello Aggiungi al carrello Aggiungi al carrello
Prodotto aggiunto alla lista
continua o Vai al carrello

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Prodotto aggiunto alla lista
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Prodotto aggiunto alla lista
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0308132

Self-tapping screw 3 x 8 mm (T10)
Prodotto aggiunto alla lista

Customising options for A9022465

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Materiale

Colore
Bottom part with plug section pebble grey RAL 7032,
Top part with integrated socket off-white RAL 9002
Standards
RoHS compliant
DIN 49441 R2
REACH compliant
DIN 49440
Lunghezza
120 mm
Larghezza
65 mm
Altezza
55 mm
PCB length, base
96 mm
PCB width, base
58 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
140 g
Customs tariff number
(OKW product)
85480090
Country of manufacture
Germany
