CARRYTEC L
Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, mounting points match the hole patterns of VESA MIS-D 100. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.
SupplyTop and bottom parts, TPE handle pad, assembly kit
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B4213208
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "battery"
A9338218
Battery compartment kit, 5 x AA
For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws
A9338218
Battery compartment kit, 5 x AAProdotto aggiunto alla lista
lava
93x98mm
Accessory "station"
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178007
Contacts, maleProdotto aggiunto alla lista
B4308228

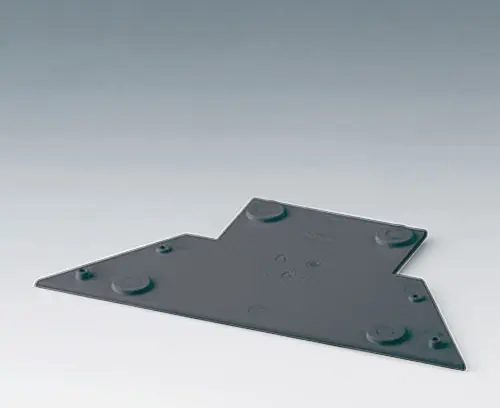

Base plate for station
Recommended for table-top applications. The rubber feet included in the supply ensure that the table-top version does not slip.
Supply 1 base plate, 4 rubber feet, assembly kit
B4308228
Base plate for stationProdotto aggiunto alla lista
lava
B4313218
Station L
For secure storage of the enclosure. Can be used on table stand or as wall suspension element. By using it as a wall suspension element the adapter (accessories) is needed. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.
Supply 1 base, assembly kit
B4313218
Station LProdotto aggiunto alla lista
lava
B4313248

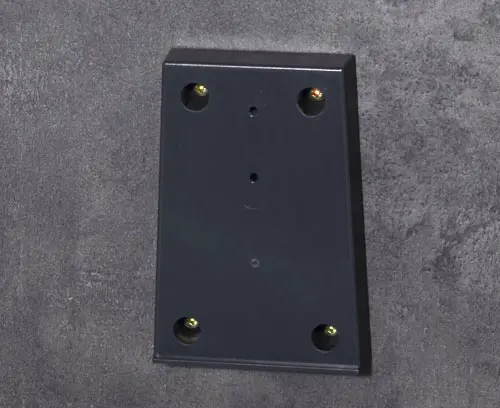

Adapter for Station L
Adapter for mounting Station L on a wall. Supplied with two self-tapping screws for attaching Station L.
Supply 1 adapter and 2 self-tapping screws
B4313248
Adapter for Station LProdotto aggiunto alla lista
lava
Accessory "protection"
B4313001
Sealing L
Application: for increasing the protection class, of CARRYTEC L.
Supply 1 sealing
B4313001
Sealing LProdotto aggiunto alla lista
Accessory "wall/holder"
B4308238
Holding clamps
For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.
Supply 1 holding clamp, assembly kit
B4308238
Holding clampsProdotto aggiunto alla lista
lava
Accessory "screws"
A0325080

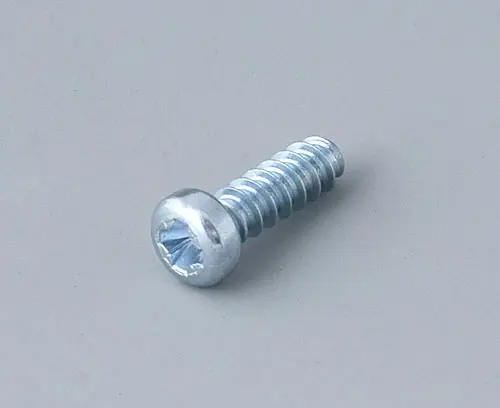

Self-tapping screws 2.5 x 8 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325080
Self-tapping screws 2.5 x 8 mm (PZ1)Prodotto aggiunto alla lista
Accessory
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178007
Contacts, maleProdotto aggiunto alla lista
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178008
Contacts, femaleProdotto aggiunto alla lista
A9193042
Mounting plates for contacts
Universal accessories that simplify the assembly of contacts for transferring data and charging current between enclosures and stations. Available as a kit consisting of two plastic mounting plates for holding the 6-pin contacts which are available as accessories ("female" contact for the enclosure and "male" contact for the station).
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station. The mounting plates can be installed first in the enclosure and station, and the contacts (accessories) at a later point in time.
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station. The mounting plates can be installed first in the enclosure and station, and the contacts (accessories) at a later point in time.
Supply 2 mounting plates
A9193042
Mounting plates for contactsProdotto aggiunto alla lista
black RAL 9005
A9193044

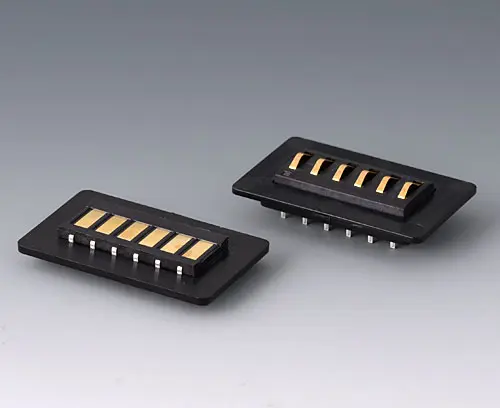

Contacting kit, 6-pin
Universal accessory consisting of mounting plates and 6-pin contacts. Simplifies the assembly of contacts for transferring data and charging current between enclosures and stations. The "female" and "male" contacts are already permanently glued in the corresponding mounting plate. The contact pins are freely accessible for soldering work.
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station ("female" contact for the enclosure and "male" contact for the station).
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station ("female" contact for the enclosure and "male" contact for the station).
Supply 2 mounting plates, 2 6-pin contacts ("female" and "male")
A9193044
Contacting kit, 6-pinProdotto aggiunto alla lista
black RAL 9005
Customising options for B4213208
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Materiale
Enclosure
Handle pad
Protection class
Necessary accessories: sealing kit
Colore
Enclosure
lava,
Handle pad orange
Handle pad orange
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Larghezza
348 mm
Altezza
303 mm
Profindità
117 mm
PCB length, base
310 mm
PCB width, base
213 mm
PCB length, top
305 mm
PCB width, top
216 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 398 KB
- AutoCAD DWG-File 922 KB
- AutoCAD DXF-File 3.634 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 1.259 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00013728.x_t 16.669 KB
- 00013728.step 28.131 KB
- 00013728.sat 34.508 KB
Weight/1 part
1211 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B4213208 e non dimenticare di chiedere la quotazione!
