Accessori per contenitori
B5010009
Bottom and top part R110F
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
VersionBottom part "level"
Supply1 top and bottom part R110 F, assembly kit
Create la vostra scheda dati PDF per B5010009
Selezionate le informazioni prodotto per la vostra scheda dati.
System components to complete
B5011119

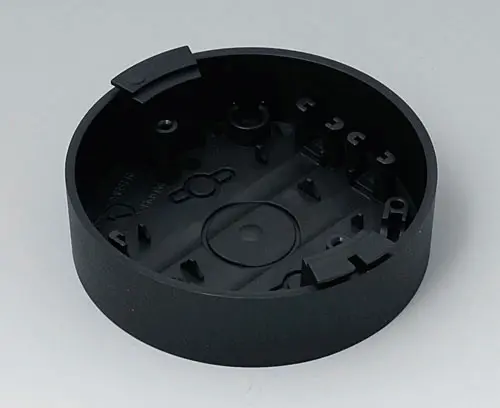

Supply 1 base
B5011119
Baseblack RAL 9005

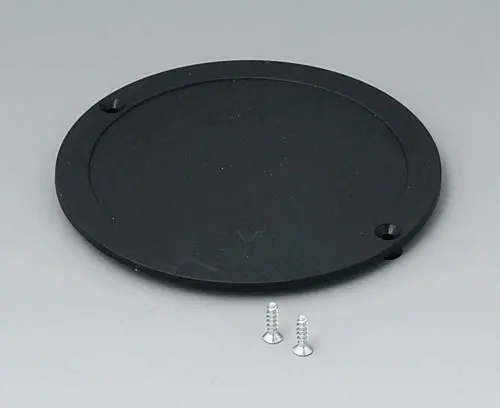

B5011849
Supply 1 lid, assembly kit
B5011849
Lidblack RAL 9005
B5011859
Supply 1 battery compartment lid, assembly kit
B5011859
Battery compartment lidblack RAL 9005
Accessory "battery"
A9166001
Supply 4 single contacts
A9166001
Set of battery clips, 2 x AAAtin-plated
A9166002
Supply 1 battery contact
A9166002
Battery contact, 2 x AAAtin-plated
A9190002
Note application ART-CASE: only for base suitable (2 x AA).
Supply 1 double contact, 2 single contacts
A9190002
Set of battery clips, 2xN/2xAA/2xAAAtin-plated
B5111109
Supply 1 battery compartment, assembly kit
B5111109
Battery compartment, 2 x AAAblack RAL 9005
Accessory "protection"
A9199005
Supply 1 strain relief device, 2 screws
A9199005
Strain reliefvolcano

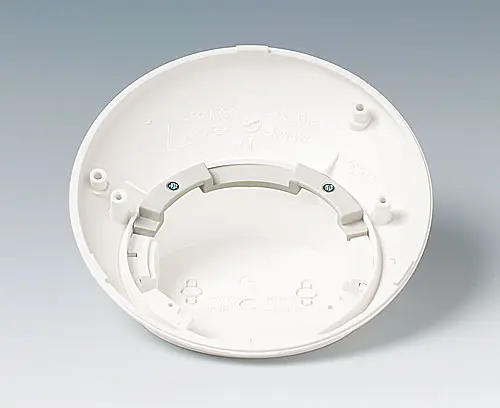

B5111707
Supply Anti-rotation device, incl. screws
B5111707
Anti-rotation deviceoff-white RAL 9002
Accessory "wall/holder"

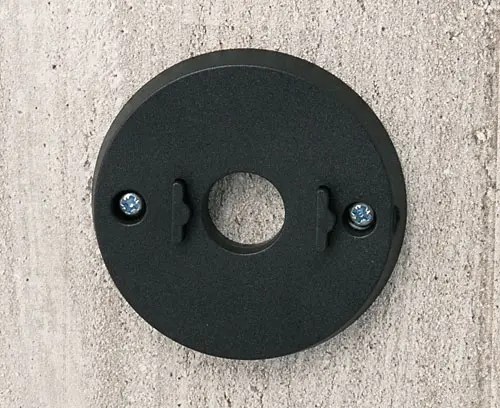

B5111309
Supply Wall mounting set, incl. safety screws
B5111309
Wall mounting setblack RAL 9005
Accessory "screws"
B5111201
Supply 4 screws
B5111201
Set of screwsAccessory
A9207150
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 284 KB
- AutoCAD DWG-File 497 KB
- AutoCAD DXF-File 1.716 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 2.497 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00011538.x_t 2.081 KB
- 00011538.STEP 5.149 KB
- 00011538.SAT 7.137 KB
(OKW product)
